SKU: THAP400E/K10-SKF
SKF THAP400E/K10 Air-driven Pump Set (upto 4000 bar)
- Regular price
- €10.385.30 ex VAT
- Sale price
- €10.385,30
- Regular price
-
Not in stock
Quantity Price Breaks
10
€9.242.92
19
€8.723.65
29
€8.619.80
39
€8.515.95
49
€8.412.09
74
€8.308.24
99
€7.788.98
199
€7.685.12
249
€7.581.27
499
€7.477.42
999
€7.269.71
SKU:
THAP400E/K10-SKF
SKF THAP400E/K10 Air-driven Pump Set (upto 4000 bar)
- Regular price
- €10.385.30 ex VAT
- Sale price
- €10.385,30
- Regular price
-
Technical
| --- | = | Technical Information |
| Maximum pressure | = | 400 Mpa (4000 bar) |
| Volume per stroke | = | 0.64 ml |
| Air Pressure | = | 3-7 bar |
| Air Pressure Limiter | = | Yes, 7 bar (Max) |
| Air Consumption | = | 200 l/min |
| Pressure Ratio | = | 1:667 |
| Pressure Gauge | = | Optional |
| Oil Container | = | No |
| Oil Outlet | = | G 3/4 thread |
| Oil Viscosity | = | 1500mm (Max) |
| Operating Temperature | = | 0 - 45 deg C |
| --- | = | Dimensions and Weights |
| Dimensions | = | 171x405x202mm |
| Case Dimensions | = | 690x245x310mm |
| Product Weight | = | 16.9 kg |
| Total Product Weight | = | 21 kg |

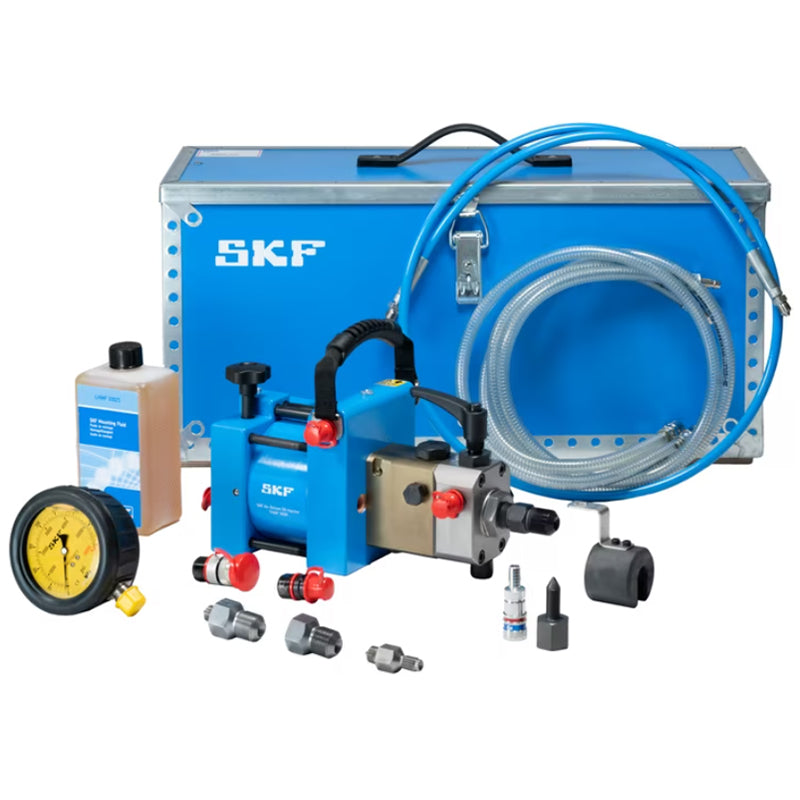

| --- | = | Product Contents |
| 1x | = | Air driven pump (400 MPa) |
| 2x | = | Low pressure hoses with couplings 1.5m (4.9ft) |
| 1x | = | Air hose coupling (f) |
| 1x | = | Mounting fluid 1L (0.22 gal) |
| 1x | = | Pressure gauge (400 MPa) |
| 1x | = | Protection sleeve (TMJG S100) |
| 1x | = | Protection device |
| 1x | = | Nipple G3/4 male, M16x1.5 cone female (400 MPa) |
| 1x | = | High pressure hose (400 MPa) |
| 2x | = | M16x1.5 cone male, 2m (6.5 ft.) |
| 1x | = | Quick connection coupling, M16x1.5 cone female (400 MPa) |
| 1x | = | Quick connection nipple, M16x1.5 cone female (400 MPa) |
| 1x | = | Nipple M16x1.5 cone male, G1/4 male (400 MPa) |
| 1x | = | Nipple M16x1.5 cone male, G3/4 male (400 MPa) |
| 1x | = | Instructions for use |
| 1x | = | Carrying case |
