SKU: TLGB21-SKF

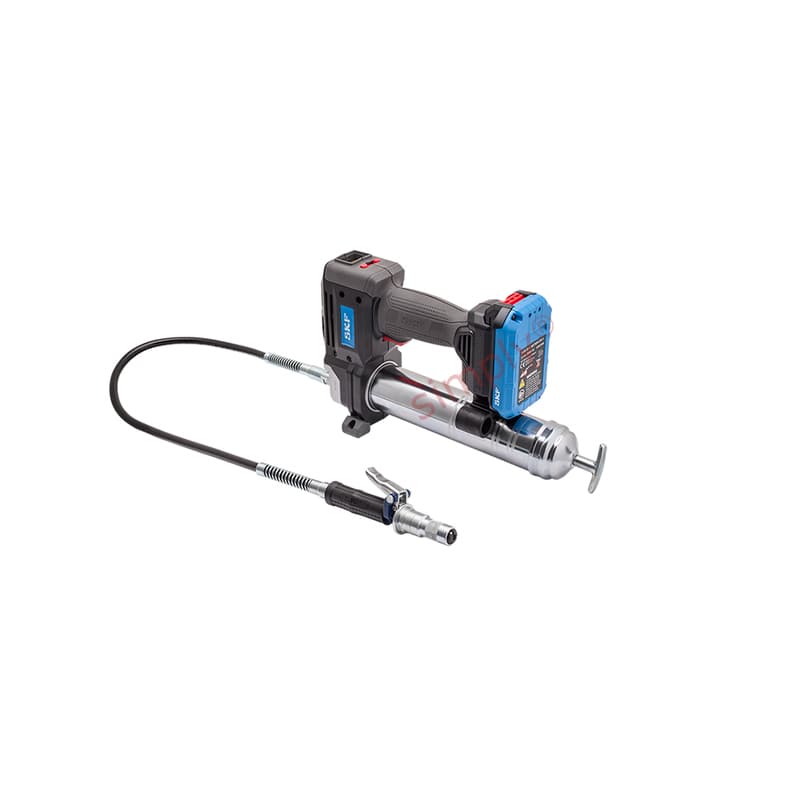

SKF TLGB21 Battery Driven Grease Gun
- Regular price
- €519.58 ex VAT
- Sale price
- €519,58
- Regular price
-
ex VAT
Quantity Price Breaks
Description
TLGB21 Battery Driven Grease Gun: The SKF Battery driven grease gun TLGB 21 is a high quality grease gun suitable for lubricating bearings, machines, vehicles and other applications. Ergonomically designed and user friendly, the battery grease gun can be used with standard SKF grease cartridges (420 ml) or filled with approximately 500 cm3 (17 US.fl.oz) of loose grease. Electrical operation and the ergonomic design of hand grip helps reduce operator fatigue compared to manual methods. Battery operation allows use in almost all environments without use of a mains supply. Long battery life of 1 000 charging cycles helps reduce product life costs
Notes: Compared to hand operated grease guns, a 420 ml cartridge can be emptied in approx 10 minutes with minimum effort, resulting in significant cost and time saving. Suitable to be used with SKF Grease Meter LAGM 1000E. Equipped with shoulder strap helps further reduce operator fatigue and facilitates ease of mobility from job to job.
Technical
| Drive | = | Battery 230 V charger |
| Maximum pressure | = | 400 bar (5800 psi) |
| Min. burst pressure | = | 800 bar (11600 psi) |
| Volume per stroke | = | Approx. 400g (0.9lb)/10 min |
| Reservoir | = | Loose grease (ca. 500cm3) or grease cartridges |
| Discharge pipe | = | 750mm (29.5 in.) |
| Accessories included | = | Carrying strap |
| Operating temperature | = | -15 to +50c (5 to 120 F) |
| Grease nozzle | = | 4 jaws (suitable for nipples according to DIN 71412) |
| Grease NLGI | = | NLGI 000 to NLGI 2 |
| Dimensions of grease gun (L x H x D) | = | 410 x 230 x 80mm |
| Dimensions of carrying case (W x D x H) | = | 480 x 390 x 130mm |
