SKU: TMBS100E-SKF

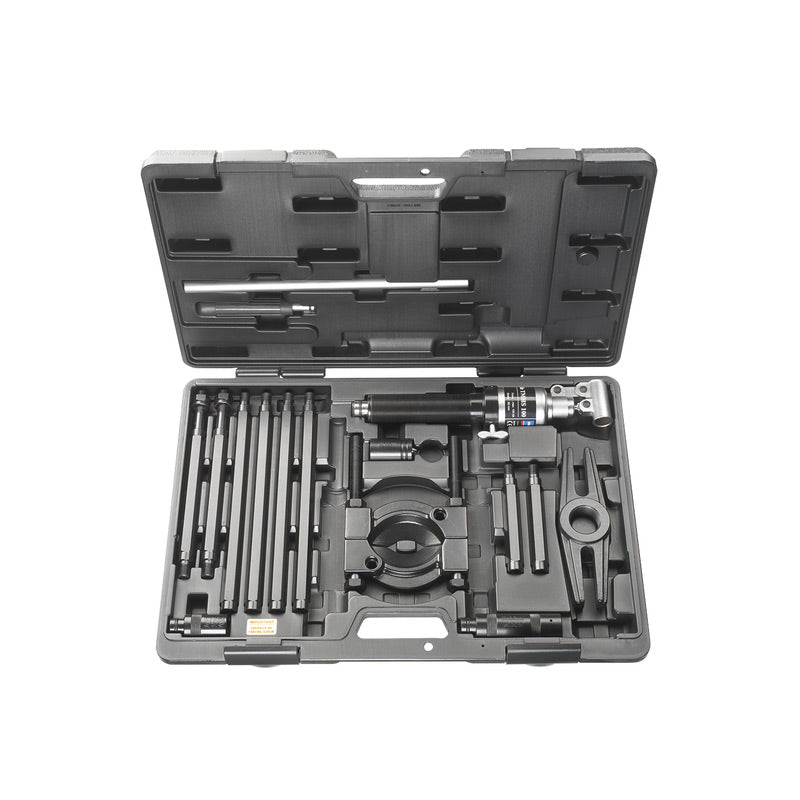

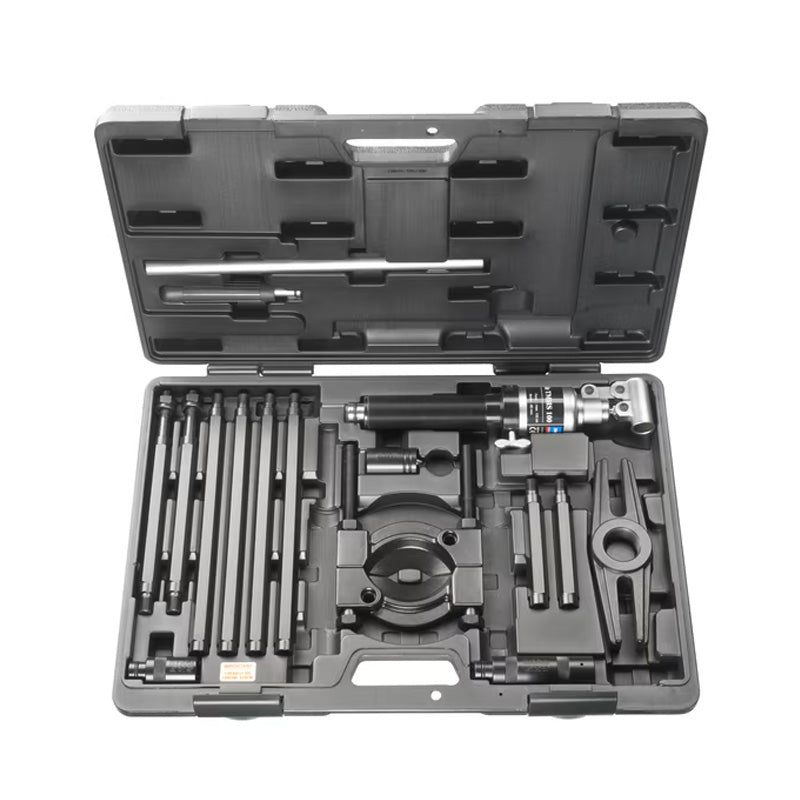

SKF TMBS100E Strong Back Puller 20-100mm Shaft Diameter Range
- Regular price
- €721.18 ex VAT
- Sale price
- €721,18
- Regular price
-
Not in stock
Quantity Price Breaks
10
€641.85
19
€605.79
29
€598.58
39
€591.37
49
€584.16
74
€576.94
99
€540.89
199
€533.67
249
€526.46
499
€519.25
999
€504.83
SKU:
TMBS100E-SKF
SKF TMBS100E Strong Back Puller 20-100mm Shaft Diameter Range
- Regular price
- €721.18 ex VAT
- Sale price
- €721,18
- Regular price
-
Technical
| Separator Set | = | 1 Piece |
| Main Rods | = | 2 Pieces |
| Extension Rods, 125mm (4.9 in.) | = | 2 Pieces |
| Extension Rods, 285mm (11.2 in.) | = | 4 Pieces |
| Beam | = | 1 Piece |
| Hydraulic Spindle TMHS100 | = | 1 Piece |
| Extension Pieces for Hydraulic Spindles 50, 100mm (2.0, 3.9 in.) | = | 2 Pieces |
| Nose Piece with Centre Point for Hydraulic Spindle | = | 1 Piece |
| Maximum Stroke | = | 80mm (3.1 in.) |
| Nominal Working Force | = | 100 kN (11.2 US ton) |
| Maximum Reach | = | 120-816mm (4.7-31.1 in.) |
| Shaft Diameter Range | = | 20-100mm (0.8-4 in.) |
| Threading Hydraulic Cylinder | = | 1 1/2-16 UN |
| Carrying Case Dimensions | = | 580 x 410 x 70mm (580x410x70 in.) |
