SKU: TMFC45-RHP

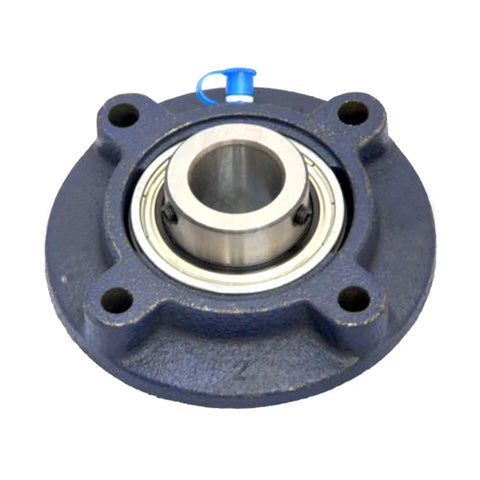

RHP TMFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
- Regular price
- €153.75 ex VAT
- Sale price
- €153,75
- Regular price
-
In stock
Quantity Price Breaks
10
€136.84
20
€129.15
30
€127.61
40
€126.08
50
€124.54
75
€123.00
100
€115.31
200
€113.78
250
€112.24
500
€110.70
1000
€107.63
SKU:
TMFC45-RHP
RHP TMFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
- Regular price
- €153.75 ex VAT
- Sale price
- €153,75
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 45mm |
| L | = | 155.6mm |
| H | = | 107.95mm |
| J | = | 130.18mm |
| G | = | 10mm |
| A1 | = | 39.67mm |
| A4 | = | 19mm |
| A5 | = | 6.4mm |
| B | = | 51.59mm |
| s | = | 19.1mm |
| d1 | = | 62.2mm |
| Dynamic load | = | 35000 N |
| Static load | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.7 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-45G+insonly" |
| > | = | 1050-45G Click Here< |
| /a> | = | |
| Casting group | = | 4 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
