SKU: TRA512

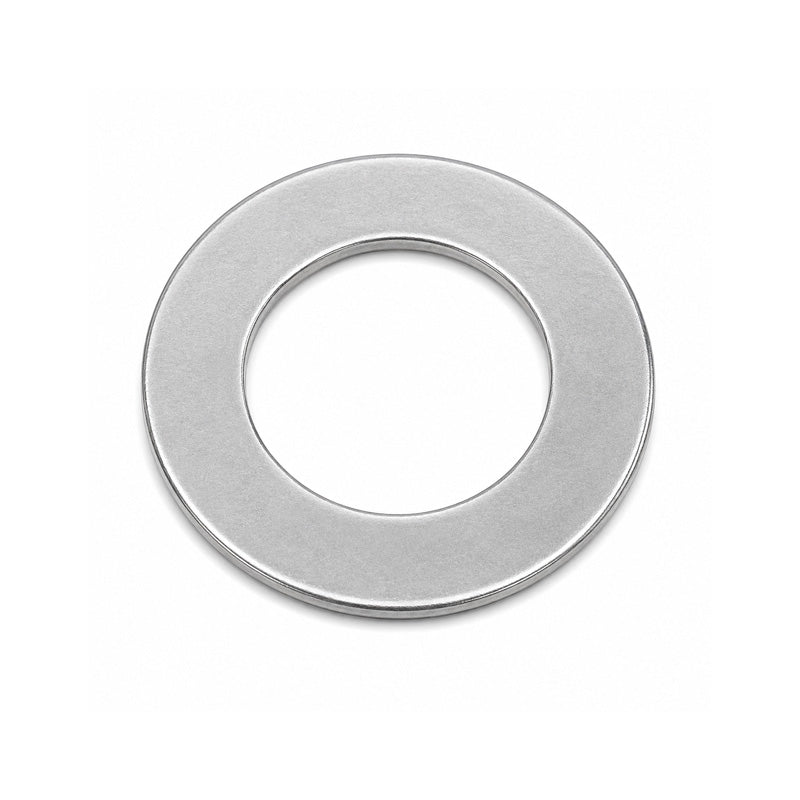

TRA512 Needle Roller Thrust Washer 0.312x0.75x0.031 inch
- Regular price
- €2.77 ex VAT
- Sale price
- €2,77
- Regular price
-
In stock
Quantity Price Breaks
10
€2.47
19
€2.33
29
€2.30
39
€2.27
49
€2.24
74
€2.22
99
€2.08
199
€2.05
249
€2.02
499
€1.99
999
€1.94
SKU:
TRA512
TRA512 Needle Roller Thrust Washer 0.312x0.75x0.031 inch
- Regular price
- €2.77 ex VAT
- Sale price
- €2,77
- Regular price
-
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 0.312 inch |
| d1 | = | 0.75 inch |
| h min | = | 0.031 inch |
| h max | = | 0.032 inch |
| Bearing | = | NTA512 |
| Pilot min | = | 0.309 inch |
| Pilot max | = | 0.312 inch |
| Dia to clear washer | = | 0.781 inch |
| Weight | = | 0.003 lbs |
