SKU: TRB2435
TRB2435 Needle Roller Thrust Washer 1.5x2.187x0.063 inch
- Regular price
- €3.37 ex VAT
- Sale price
- €3,37
- Regular price
-
In stock
Quantity Price Breaks
10
€3.00
19
€2.83
29
€2.80
39
€2.76
49
€2.73
74
€2.70
99
€2.53
199
€2.49
249
€2.46
499
€2.43
999
€2.36
SKU:
TRB2435
TRB2435 Needle Roller Thrust Washer 1.5x2.187x0.063 inch
- Regular price
- €3.37 ex VAT
- Sale price
- €3,37
- Regular price
-
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical

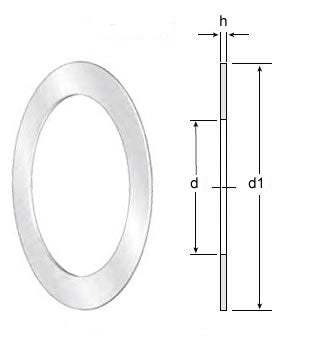

| d | = | 1.5 inch |
| d1 | = | 2.187 inch |
| h min | = | 0.063 inch |
| h max | = | 0.063 inch |
| Bearing | = | NTA2435 |
| Pilot min | = | 1.497 inch |
| Pilot max | = | 1.500 inch |
| Dia to clear washer | = | 2.219 inch |
| Weight | = | 0.034 lbs |
