SKU: TRC2233

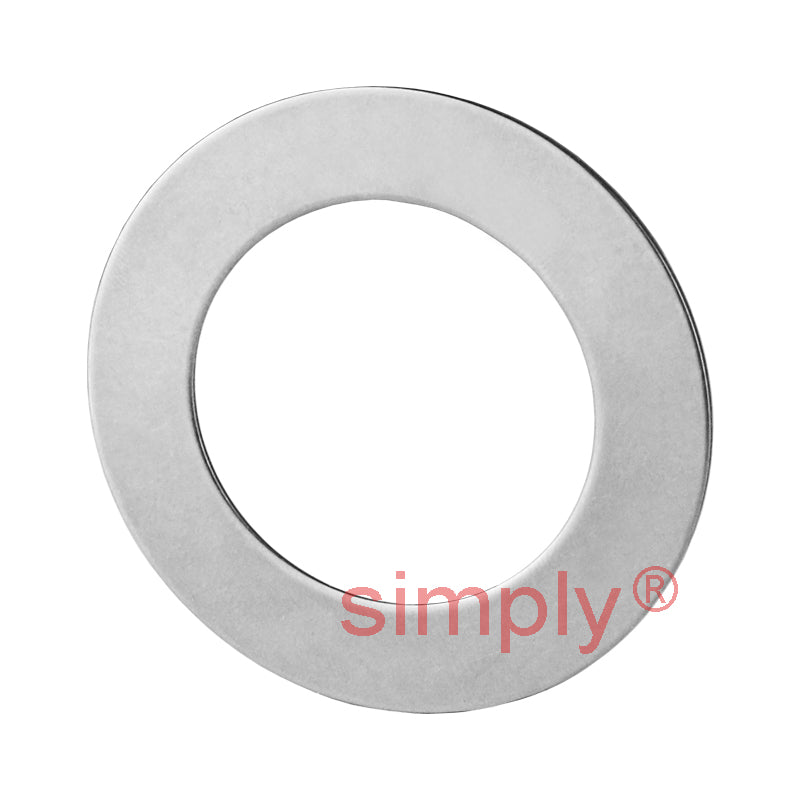

TRC2233 Needle Roller Thrust Washer 1.375x2.063x0.094 inch
- Regular price
- €3.23 ex VAT
- Sale price
- €3,23
- Regular price
-
In stock
Quantity Price Breaks
10
€2.87
19
€2.71
29
€2.68
39
€2.65
49
€2.62
74
€2.58
99
€2.42
199
€2.39
249
€2.36
499
€2.33
999
€2.26
SKU:
TRC2233
TRC2233 Needle Roller Thrust Washer 1.375x2.063x0.094 inch
- Regular price
- €3.23 ex VAT
- Sale price
- €3,23
- Regular price
-
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 1.375 inch |
| d1 | = | 2.063 inch |
| h min | = | 0.094 inch |
| h max | = | 0.095 inch |
| Bearing | = | NTA2233 |
| Pilot min | = | 1.372 inch |
| Pilot max | = | 1.375 inch |
| Dia to clear washer | = | 2.094 inch |
| Weight | = | 0.040 lbs |
