SKU: TS-N3/4-SE27-DUN

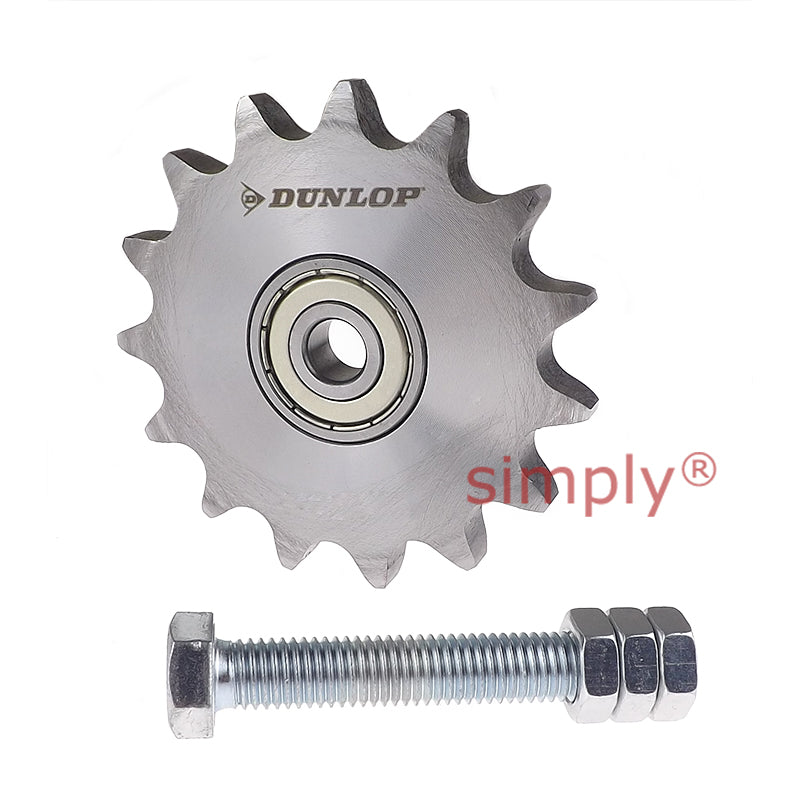

Dunlop 12BX15T N3/4 inch Sprocket for SE27 Tension Arm
- Regular price
- €18.63 ex VAT
- Sale price
- €18,63
- Regular price
-
Not in stock
Quantity Price Breaks
3
€16.58
5
€15.65
9
€15.46
19
€15.28
49
€15.09
74
€14.90
99
€13.97
199
€13.79
249
€13.60
499
€13.41
999
€13.04
SKU:
TS-N3/4-SE27-DUN
Dunlop 12BX15T N3/4 inch Sprocket for SE27 Tension Arm
- Regular price
- €18.63 ex VAT
- Sale price
- €18,63
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N3/4 inch |
| No of Teeth | = | 15 |
| W | = | M12mm |
| L | = | 80mm |
| A | = | 12mm |
| B | = | 11.1mm |
| C | = | 12mm |
| D | = | 91.63mm |
| Torque Hex Nut 0.5d | = | 35 Nm |
| Adjusting Range Track R | = | 27-65mm |
| Size SE | = | 27 |
| To Fit Roller Chain ANSI | = | 60 |
| To Fit Roller Chain DIN 8187 | = | ISO 12 B |
