SKU: TS-N3/8SE15/18-DUN
Dunlop 06BX15T N3/8 inch Sprocket for SE15/SE18 Tension Arm
- Regular price
- €12.43 ex VAT
- Sale price
- €12,43
- Regular price
-
Not in stock
Quantity Price Breaks
3
€11.06
5
€10.44
9
€10.32
19
€10.19
49
€10.07
74
€9.94
99
€9.32
199
€9.20
249
€9.07
499
€8.95
999
€8.70
SKU:
TS-N3/8SE15/18-DUN

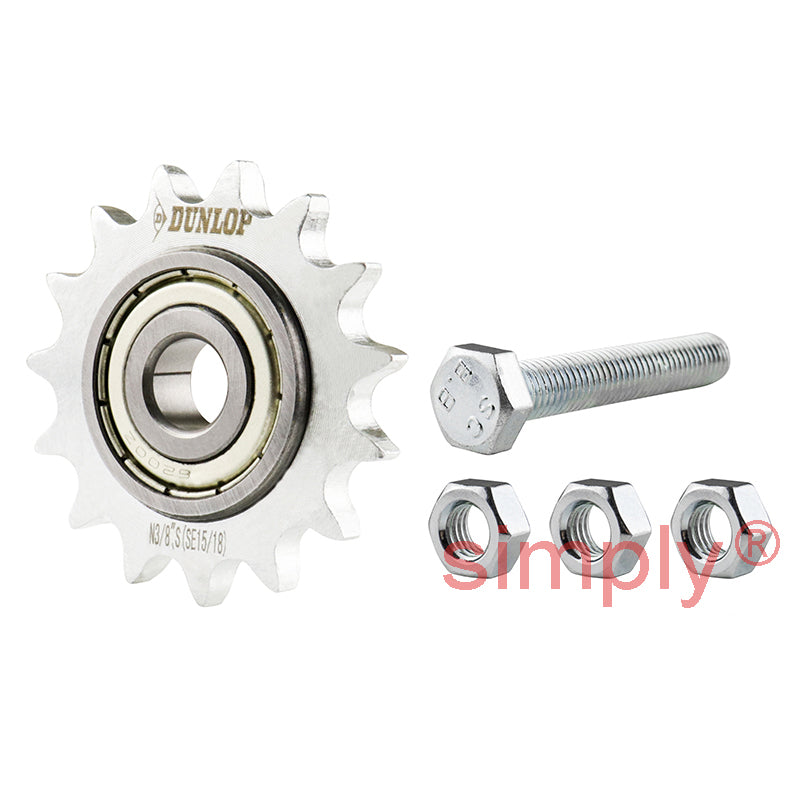

Dunlop 06BX15T N3/8 inch Sprocket for SE15/SE18 Tension Arm
- Regular price
- €12.43 ex VAT
- Sale price
- €12,43
- Regular price
-
Description

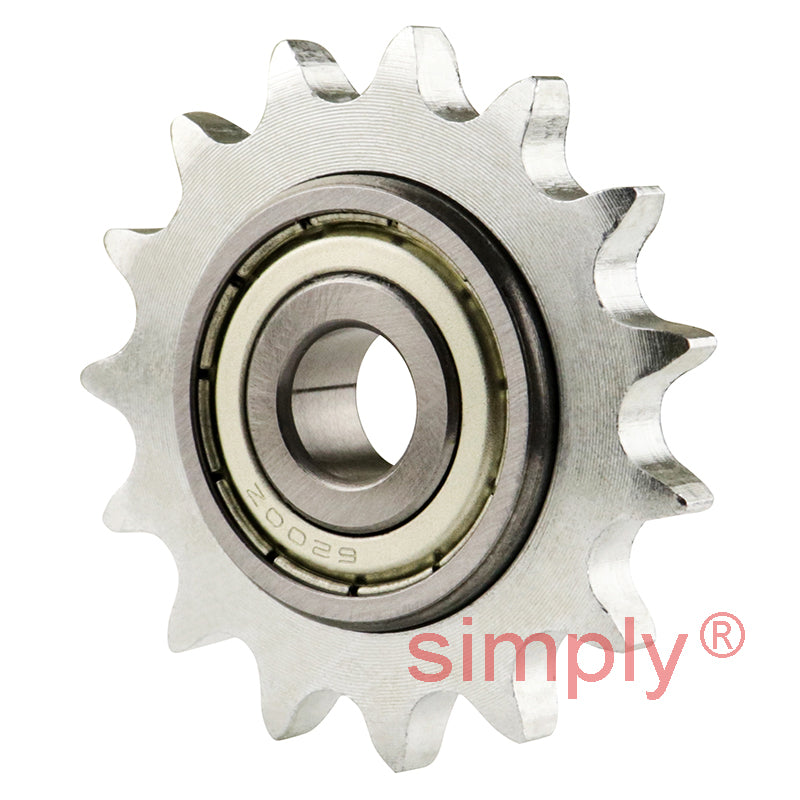

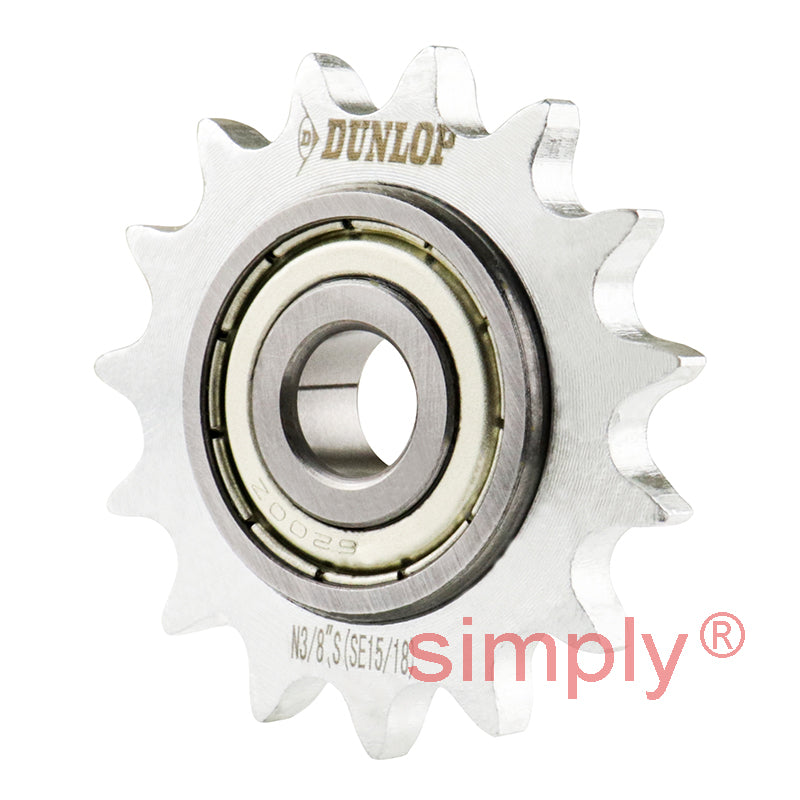

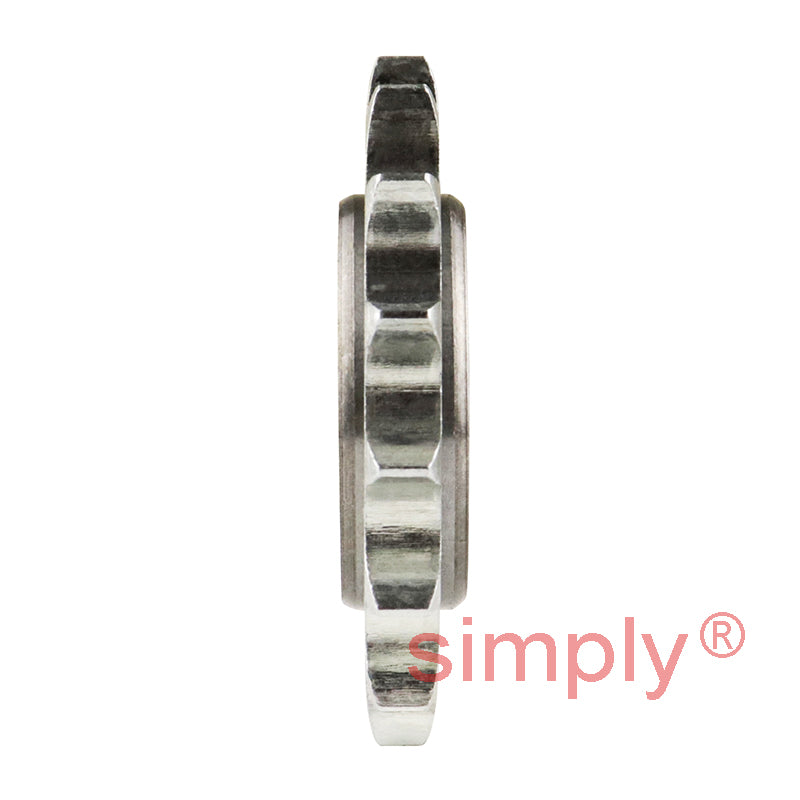

Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N3/8 inch |
| No of Teeth | = | 15 |

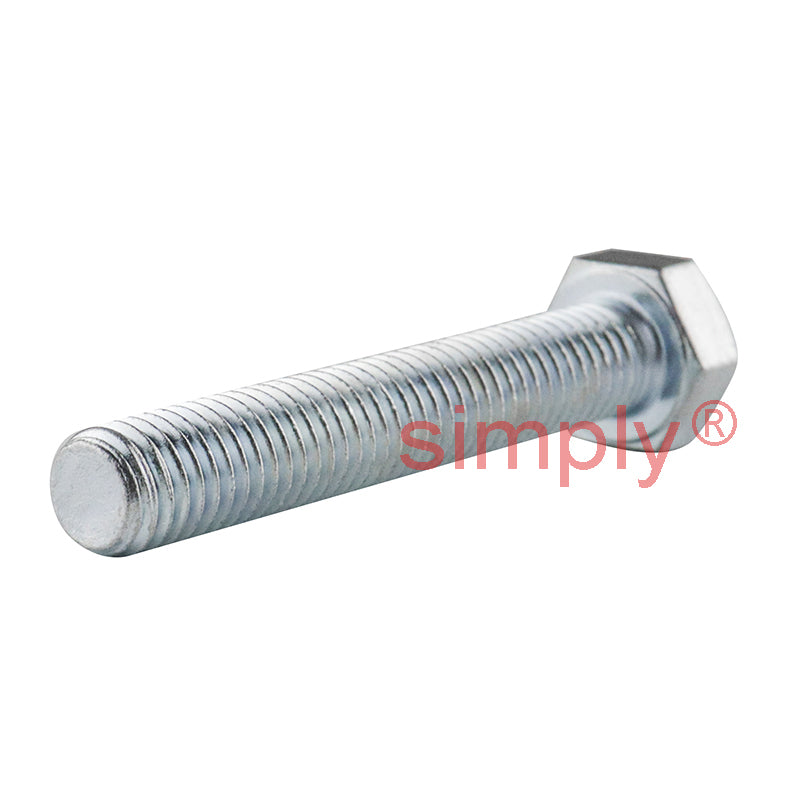

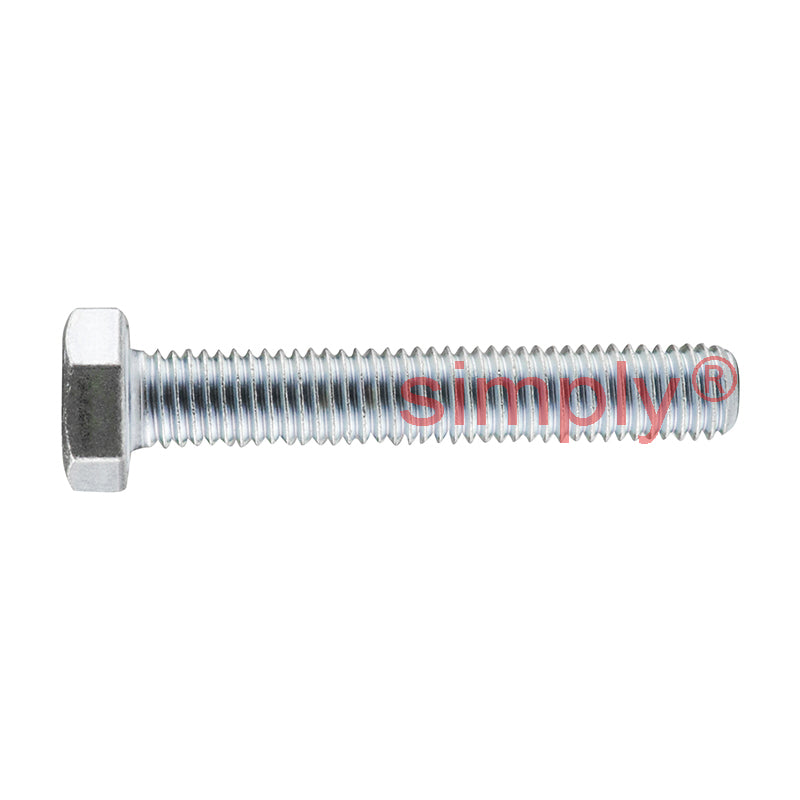

| W | = | M10mm |
| L | = | 55mm |
| A | = | 10mm |
| B | = | 5.3mm |
| C | = | 9mm |
| D | = | 45.81mm |
| Torque Hex Nut 0.5d | = | 20 Nm |
| Adjusting Range Track R | = | 22-43/23/43mm |
| Size SE | = | 15/18 |
| To Fit Roller Chain ANSI | = | 35 |
| To Fit Roller Chain DIN 8187 | = | ISO 06 B |
