INA TSHE45XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 45mm Bore

SKU: TSHE45-XL-INA

INA TSHE45XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 45mm Bore

€117.20 ex VAT
€117,20
ex VAT
Not in stock

Quantity Price Breaks

4 €104.31
9 €98.45
19 €97.28
29 €96.10
39 €94.93
49 €93.76
59 €87.90
69 €86.73
79 €85.56
89 €84.38
99 €82.04
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA TSHE45XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 45mm Bore
SKU: TSHE45-XL-INA

INA TSHE45XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 45mm Bore

€117.20 ex VAT
€117,20
ex VAT

Description

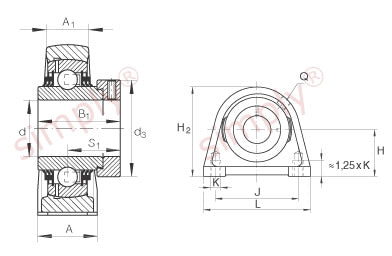

INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
