SKU: UC.203-11

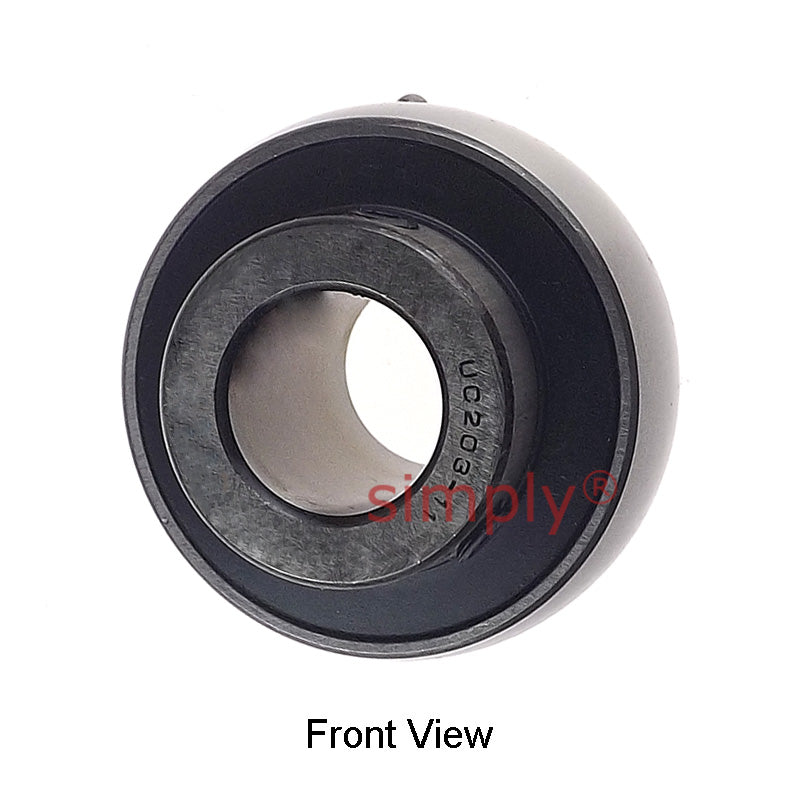

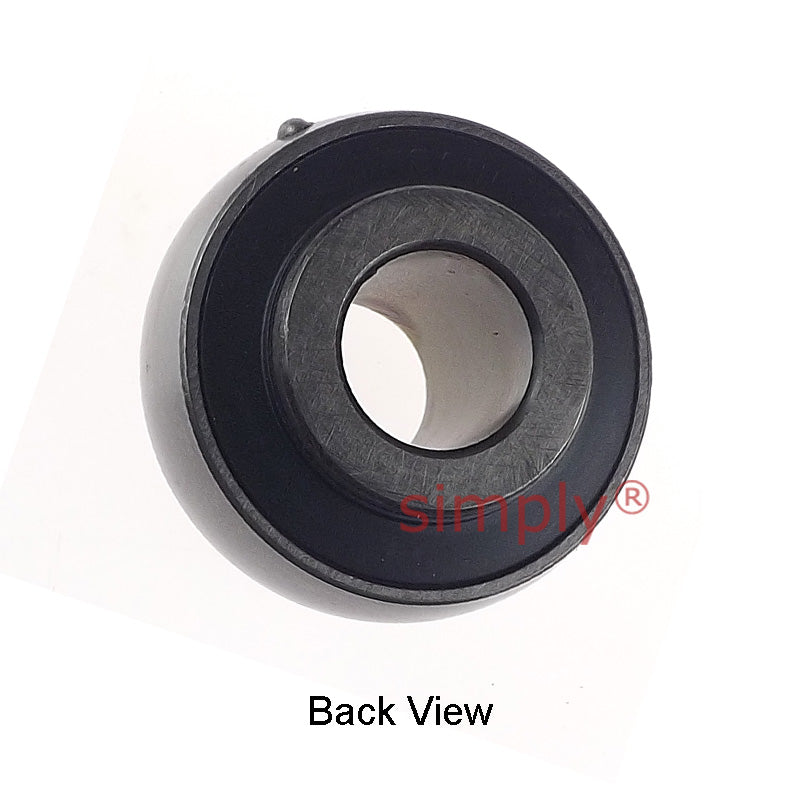

UC203-11 Imperial Bearing Insert with 11/16 inch Bore 47mm Outside Dia
- Regular price
- €7.50 ex VAT
- Sale price
- €7,50
- Regular price
-
In stock
Quantity Price Breaks
3
€6.68
4
€6.30
9
€6.23
19
€6.15
49
€6.08
99
€6.00
499
€5.63
999
€5.55
1999
€5.48
2999
€5.40
4999
€5.25
SKU:
UC.203-11
UC203-11 Imperial Bearing Insert with 11/16 inch Bore 47mm Outside Dia
- Regular price
- €7.50 ex VAT
- Sale price
- €7,50
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 11/16 inch |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 17mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| G | = | 4.8mm |
| Grub screw | = | 1/4" |
| -28 UNF | = | Weight |
| 0.21 kg | = | Dynamic load |
| 1000 kgf | = | Static load |
| 630 kgf | = | N/A |
