SKU: UC.205-16

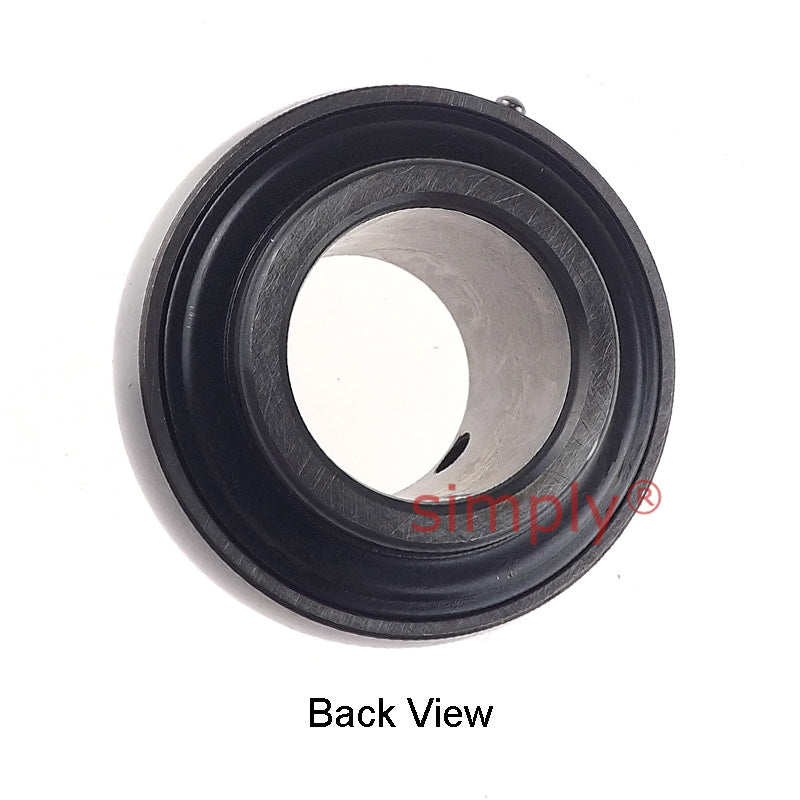

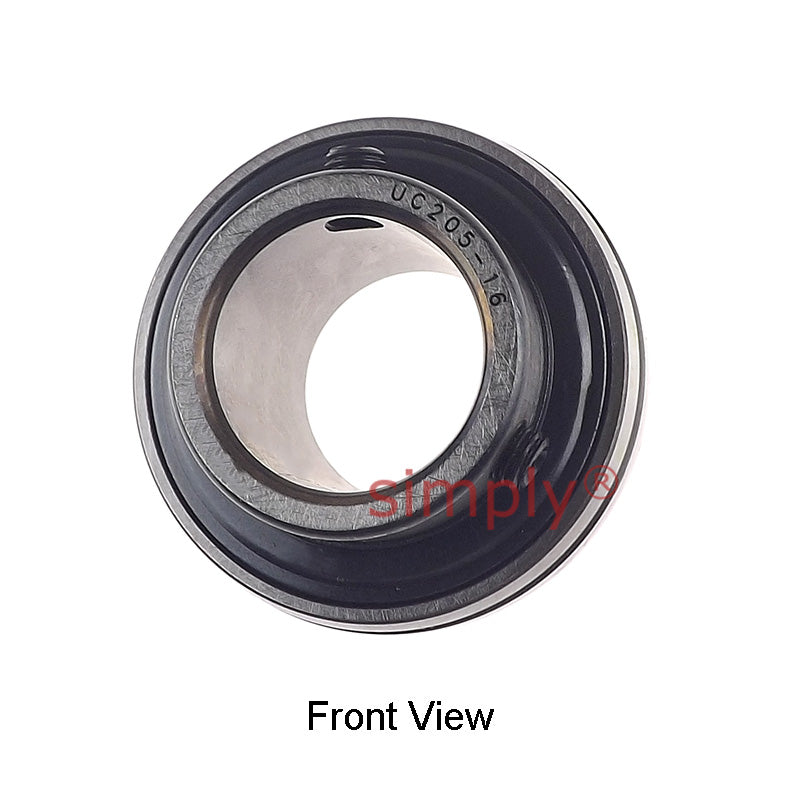

UC205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
- Regular price
- €6.31 ex VAT
- Sale price
- €6,31
- Regular price
-
In stock
Quantity Price Breaks
3
€5.62
4
€5.30
9
€5.24
19
€5.17
49
€5.11
99
€5.05
499
€4.73
999
€4.67
1999
€4.61
2999
€4.54
4999
€4.42
SKU:
UC.205-16
UC205-16 Imperial Bearing Insert with 1 inch Bore 52mm Outside Dia
- Regular price
- €6.31 ex VAT
- Sale price
- €6,31
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 1 inch |
| D | = | 52mm |
| Bi | = | 34mm |
| Be | = | 17mm |
| n | = | 14.3mm |
| m | = | 19.7mm |
| G | = | 5.5mm |
| Grub screw | = | 1/4" |
| -28 UNF | = | Weight |
| 0.2 kg | = | Dynamic load |
| 1100 kgf | = | Static load |
| 710 kgf | = | Rec max speed |
| 6250 rpm | = | N/A |
