SKU: UC.207

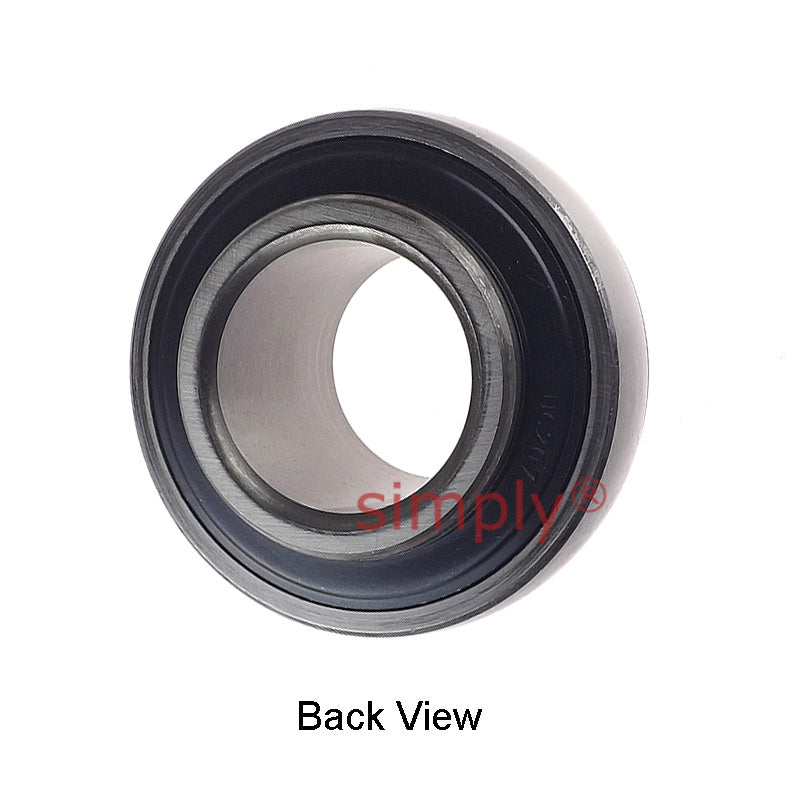

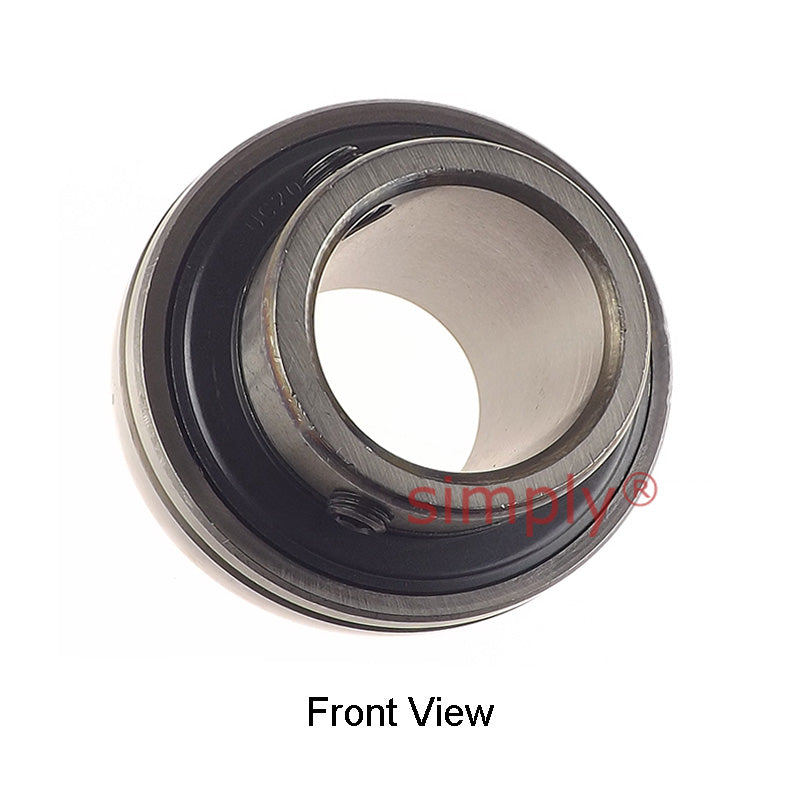

UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
- Regular price
- €10.47 ex VAT
- Sale price
- €10,47
- Regular price
-
In stock
Quantity Price Breaks
3
€9.32
4
€8.79
9
€8.69
19
€8.59
49
€8.48
99
€8.38
499
€7.85
999
€7.75
1999
€7.64
2999
€7.54
4999
€7.33
SKU:
UC.207
UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
- Regular price
- €10.47 ex VAT
- Sale price
- €10,47
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 35mm |
| D | = | 72mm |
| Bi | = | 42.9mm |
| Be | = | 20mm |
| n | = | 17.5mm |
| m | = | 25.4mm |
| G | = | 6.5mm |
| Grub screw | = | M8x1.0 |
| Weight | = | 0.48 kg |
| Dynamic load | = | 2010 kgf |
| Static load | = | 1390 kgf |
| Rec max speed | = | 4500 rpm |
