SKU: UC.209-27

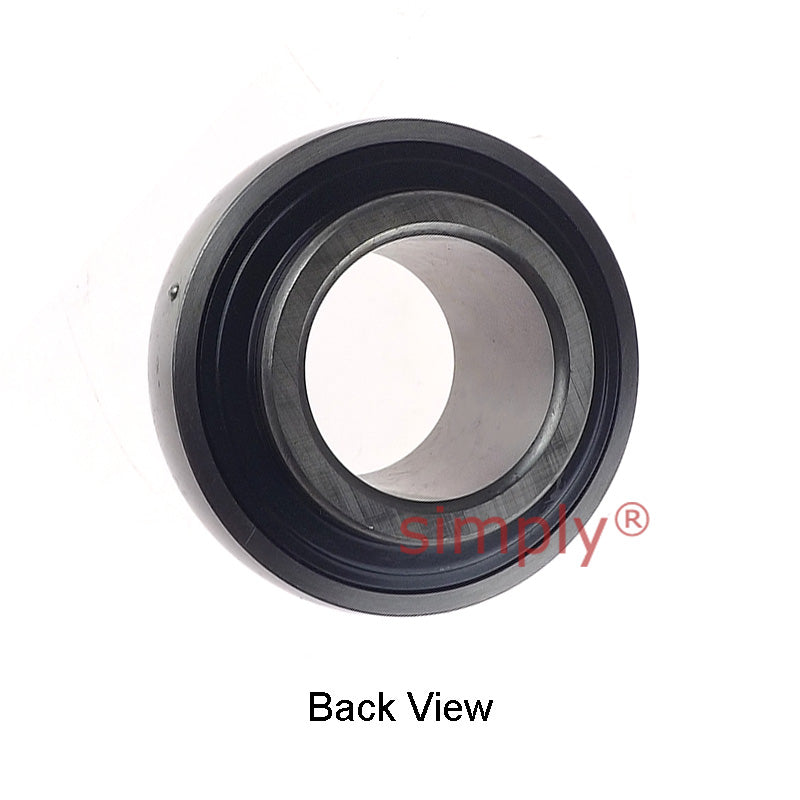

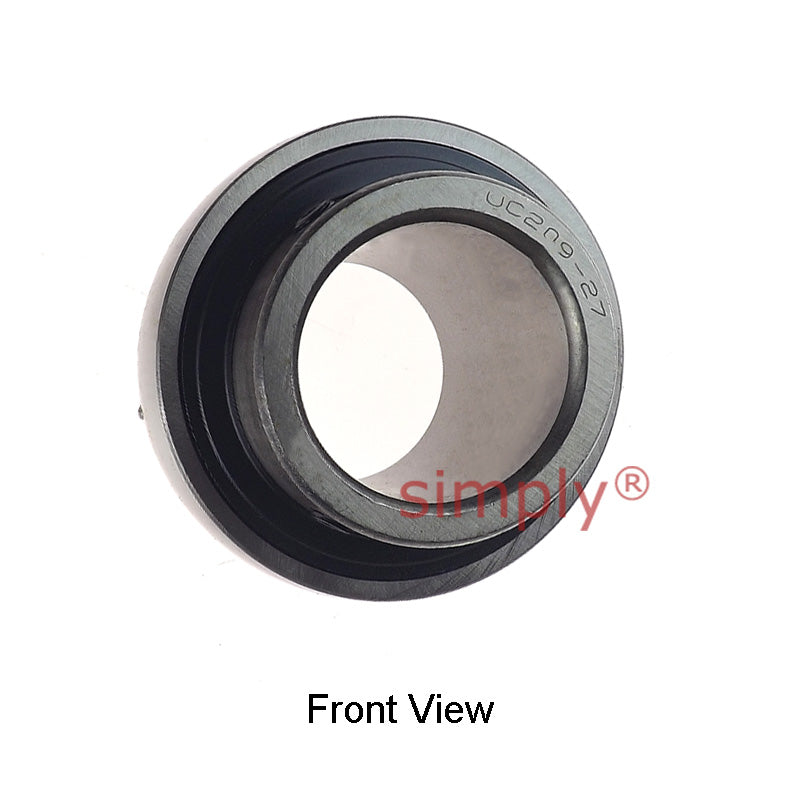

UC209-27 Imperial Bearing Insert with 1-11/16 inch Bore 85mm Outside Dia
- Regular price
- €15.55 ex VAT
- Sale price
- €15,55
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€13.84
4
€13.06
9
€12.91
19
€12.75
49
€12.60
99
€12.44
499
€11.66
999
€11.51
1999
€11.35
2999
€11.20
4999
€10.89
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 1-11/16 inch |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 22mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 10mm |
| Grub screw | = | 5/16" |
| -24 UNF | = | Weight |
| 0.74 kg | = | Dynamic load |
| 2560 kgf | = | Static load |
| 1810 kgf | = | Rec max speed |
| 3700 rpm | = | N/A |
