SKU: UC.209-28

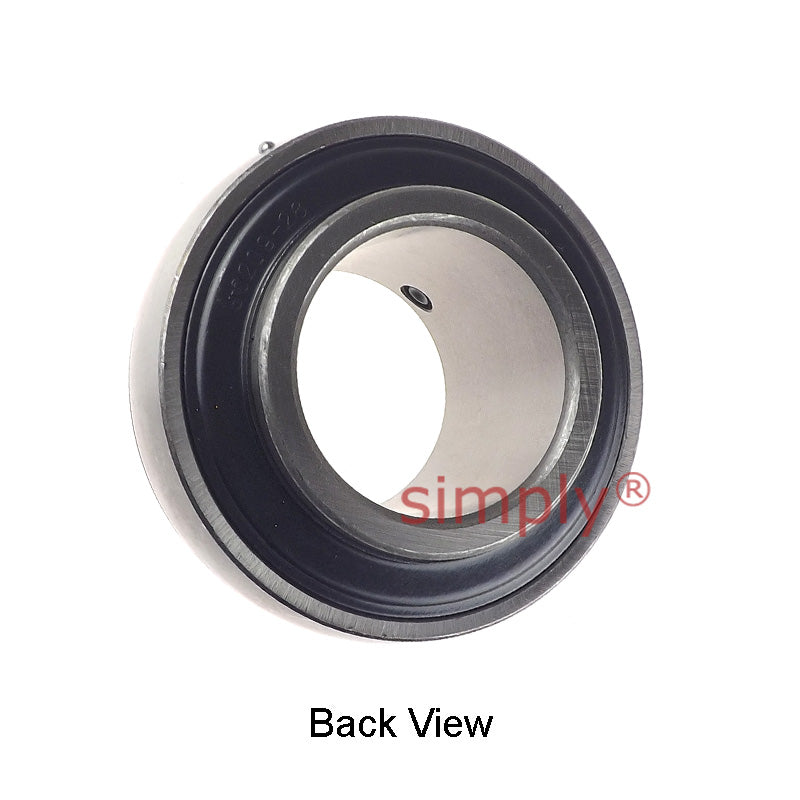

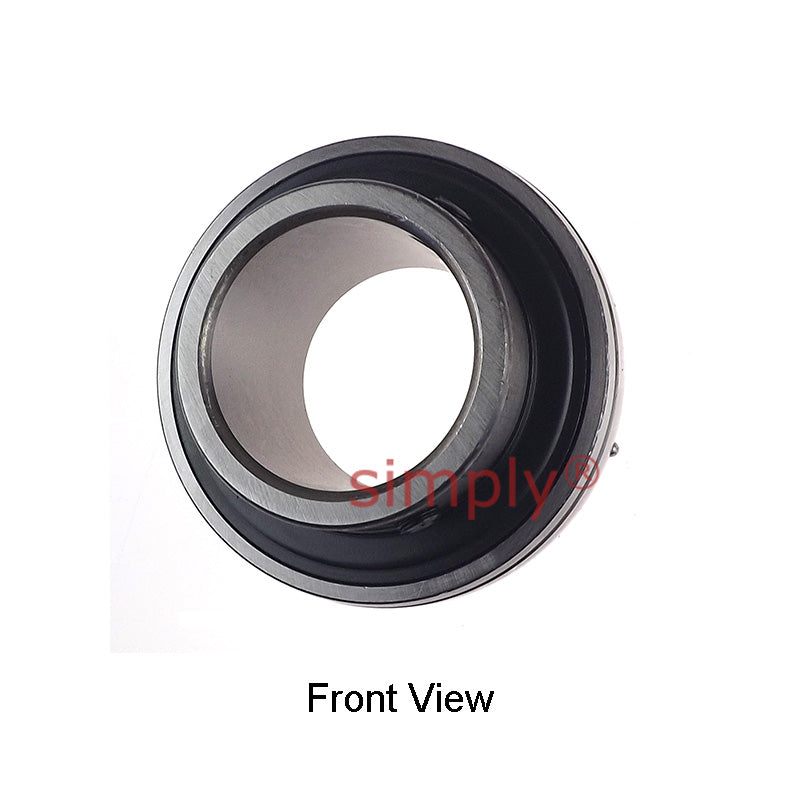

UC209-28 Imperial Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
- Regular price
- €14.92 ex VAT
- Sale price
- €14,92
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€13.28
4
€12.53
9
€12.38
19
€12.23
49
€12.09
99
€11.94
499
€11.19
999
€11.04
1999
€10.89
2999
€10.74
4999
€10.44
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 1-3/4 inch |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 22mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 10mm |
| Grub screw | = | 5/16" |
| -24 UNF | = | Weight |
| 0.7 kg | = | Dynamic load |
| 2560 kgf | = | Static load |
| 1810 kgf | = | Rec max speed |
| 3700 rpm | = | N/A |
