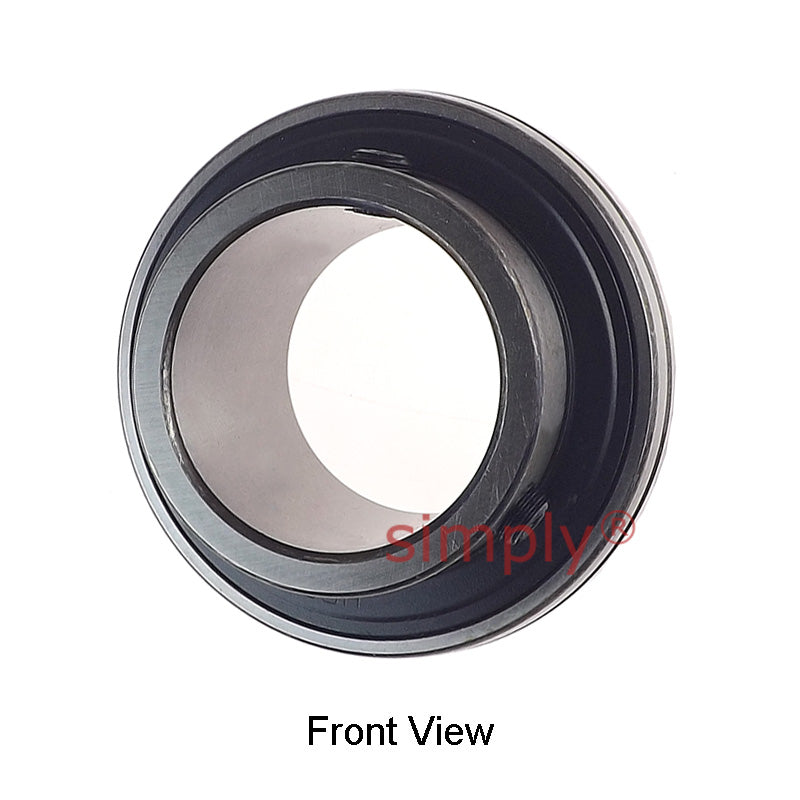

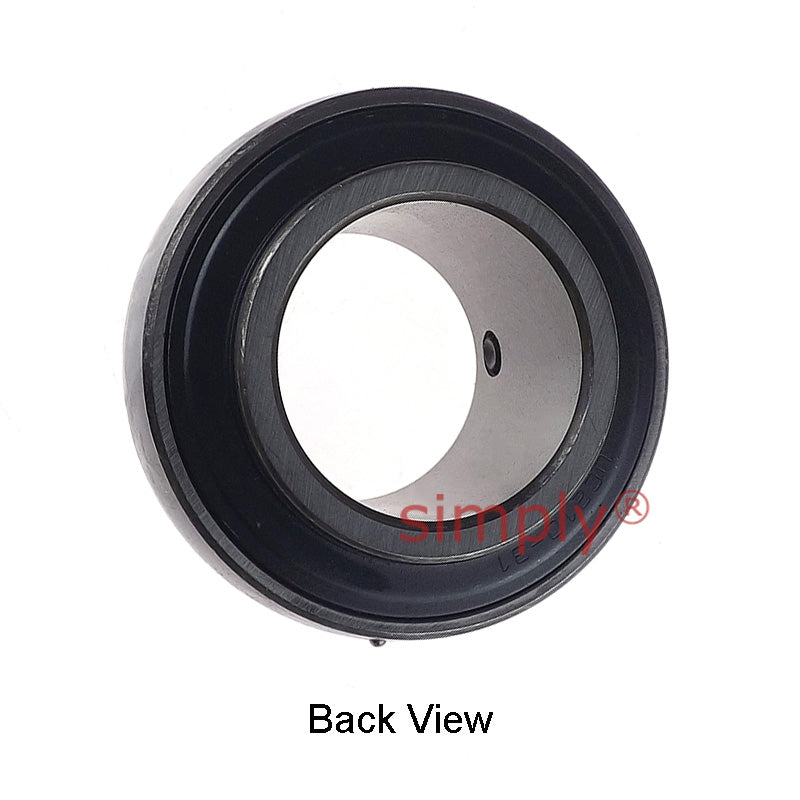

UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia

SKU: UC.210-31

UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia

€18.48 ex VAT
€18,48
ex VAT
Equivalent to: 1050-1-15/16G
In stock

Quantity Price Breaks

3 €16.45
4 €15.52
9 €15.34
19 €15.15
49 €14.97
99 €14.78
499 €13.86
999 €13.68
1999 €13.49
2999 €13.31
4999 €12.94
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
SKU: UC.210-31

UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia

€18.48 ex VAT
€18,48
ex VAT

Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 1-15/16 inch
D = 90mm
Bi = 51.6mm
Be = 24mm
n = 19mm
m = 32.6mm
G = 10mm
Grub screw = 3/8"
-24 UNF = Weight
0.82 kg = Dynamic load
2750 kgf = Static load
2020 kgf = Rec max speed
3400 rpm = N/A
