SKU: UC.211-35

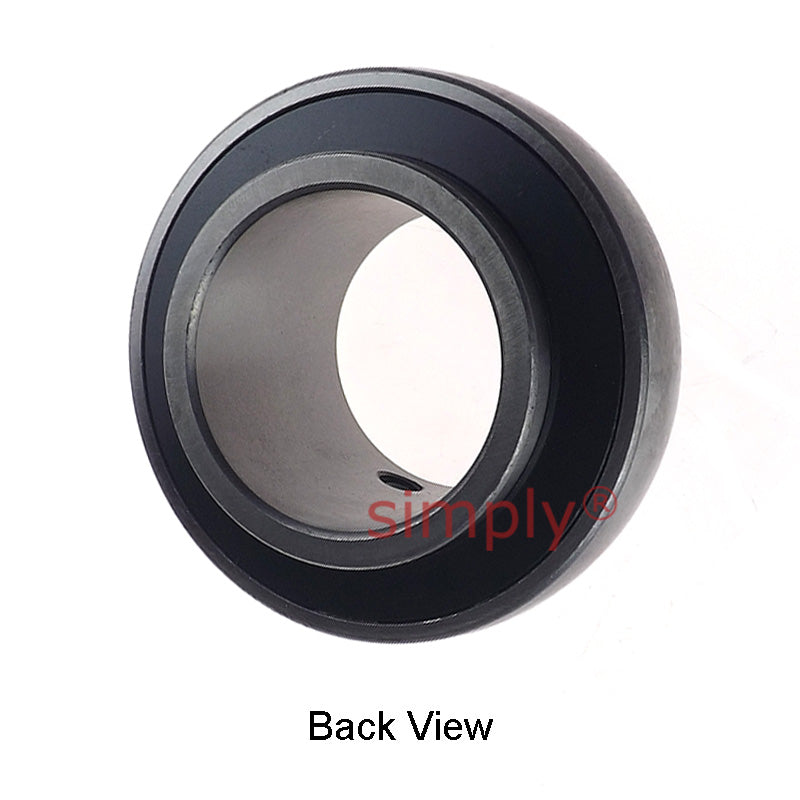

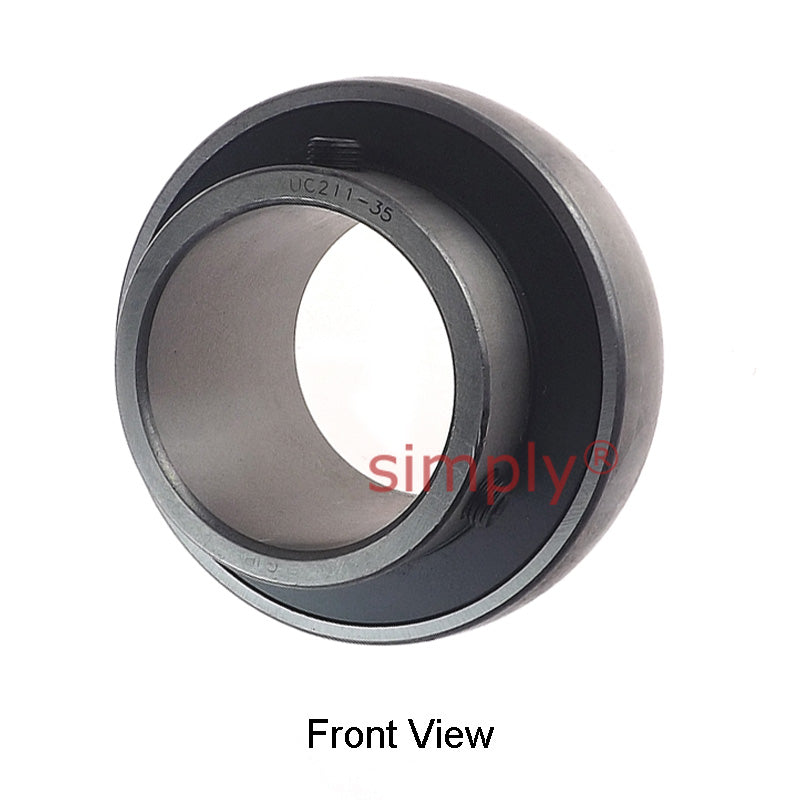

UC211-35 Imperial Bearing Insert with 2-3/16 inch Bore 100mm Outside Dia
- Regular price
- €30.13 ex VAT
- Sale price
- €30,13
- Regular price
-
In stock
Quantity Price Breaks
3
€26.82
4
€25.31
9
€25.01
19
€24.71
49
€24.41
99
€24.10
499
€22.60
999
€22.30
1999
€21.99
2999
€21.69
4999
€21.09
SKU:
UC.211-35
UC211-35 Imperial Bearing Insert with 2-3/16 inch Bore 100mm Outside Dia
- Regular price
- €30.13 ex VAT
- Sale price
- €30,13
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 2-3/16 inch |
| D | = | 100mm |
| Bi | = | 55.6mm |
| Be | = | 25mm |
| n | = | 22.2mm |
| m | = | 33.4mm |
| G | = | 10mm |
| Grub screw | = | 3/8-24 UNF |
| Weight | = | 1.11 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
