SKU: UC.212

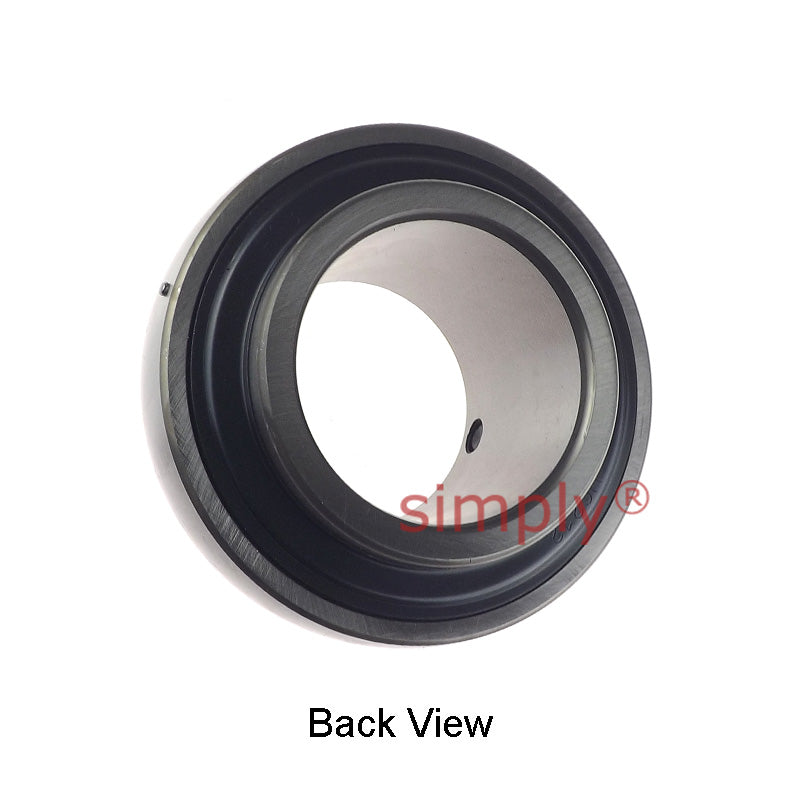

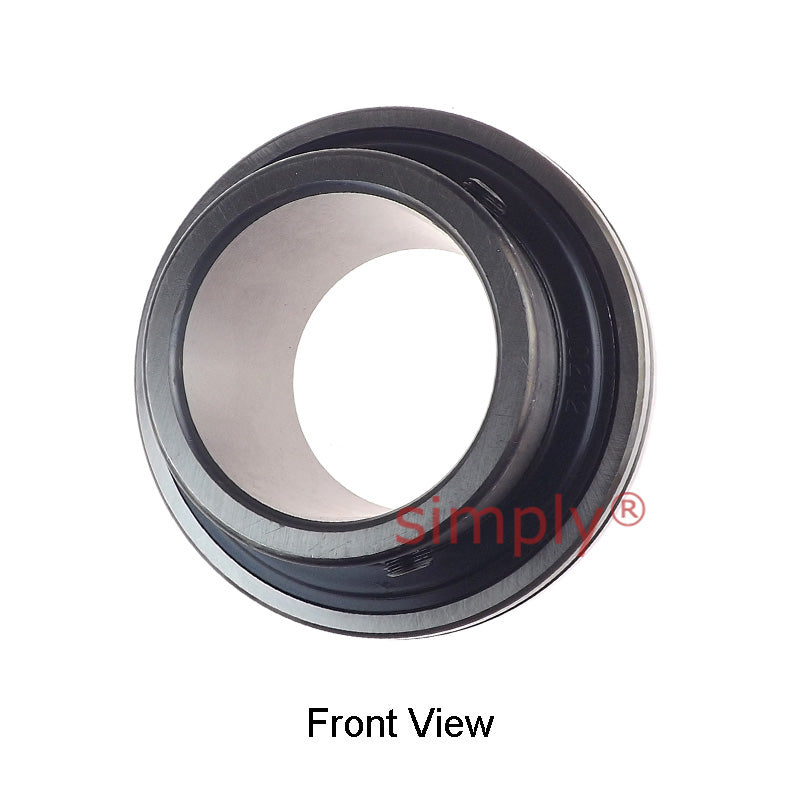

UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
- Regular price
- €34.43 ex VAT
- Sale price
- €34,43
- Regular price
-
In stock
Quantity Price Breaks
3
€30.64
4
€28.92
9
€28.58
19
€28.23
49
€27.89
99
€27.54
499
€25.82
999
€25.48
1999
€25.13
2999
€24.79
4999
€24.10
SKU:
UC.212
UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
- Regular price
- €34.43 ex VAT
- Sale price
- €34,43
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 60mm |
| D | = | 110mm |
| Bi | = | 65.1mm |
| Be | = | 27mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | M10x1.0 |
| Weight | = | 1.45 kg |
| Dynamic load | = | 4100 kgf |
| Static load | = | 3150 kgf |
| Rec max speed | = | 2800 rpm |
