SKU: UC.212-36

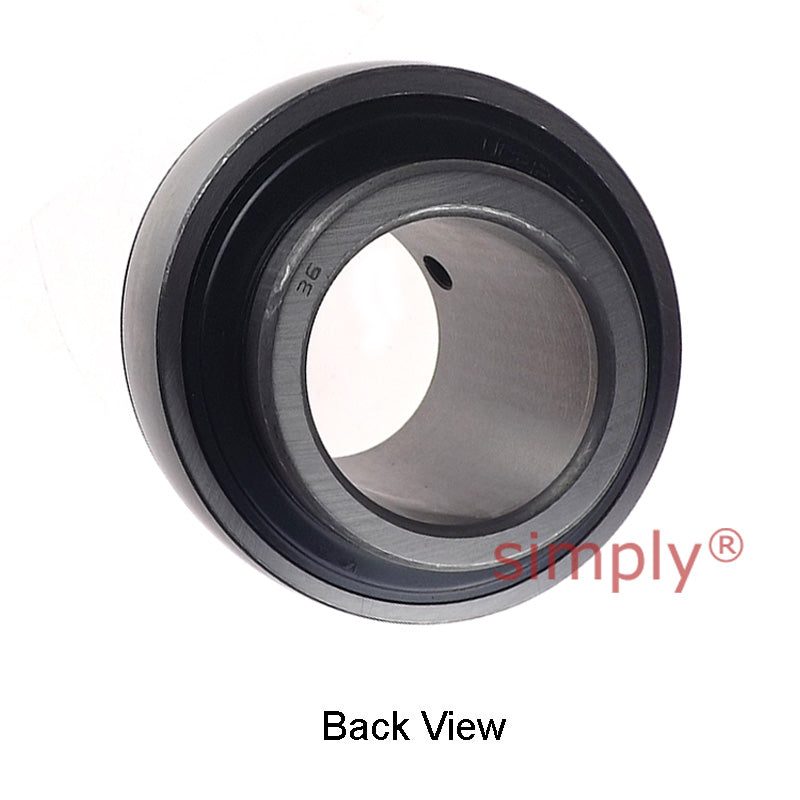

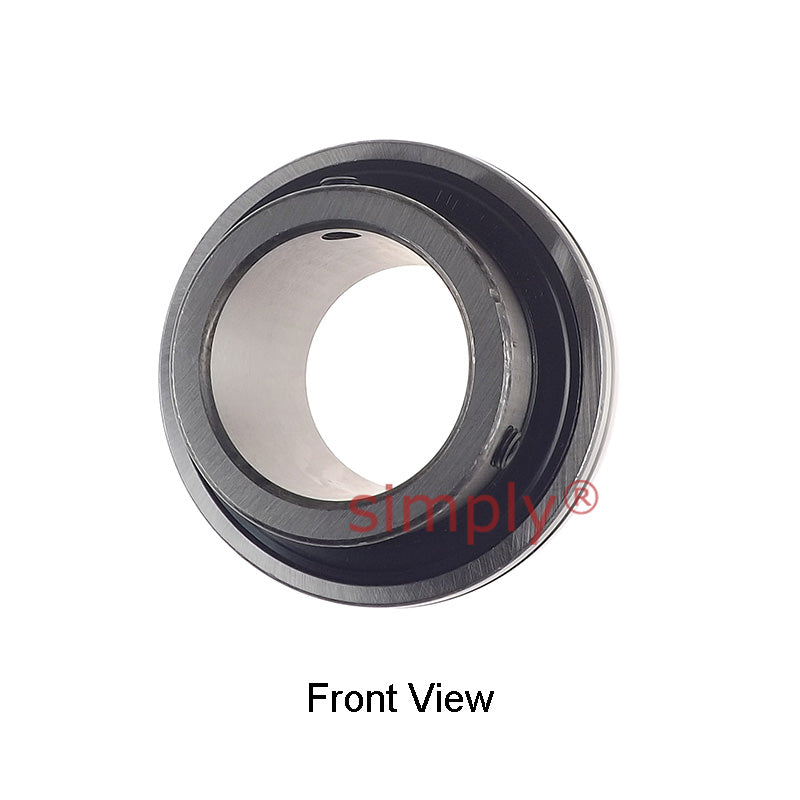

UC212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
- Regular price
- €41.49 ex VAT
- Sale price
- €41,49
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€36.93
4
€34.85
9
€34.44
19
€34.02
49
€33.61
99
€33.19
499
€31.12
999
€30.70
1999
€30.29
2999
€29.87
4999
€29.04
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 2-1/4 inch |
| D | = | 110mm |
| Bi | = | 65.1mm |
| Be | = | 27mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | 3/8" |
| -24 UNF | = | Weight |
| 1.67 kg | = | Dynamic load |
| 4100 kgf | = | Static load |
| 3150 kgf | = | N/A |
