SKU: UC.213

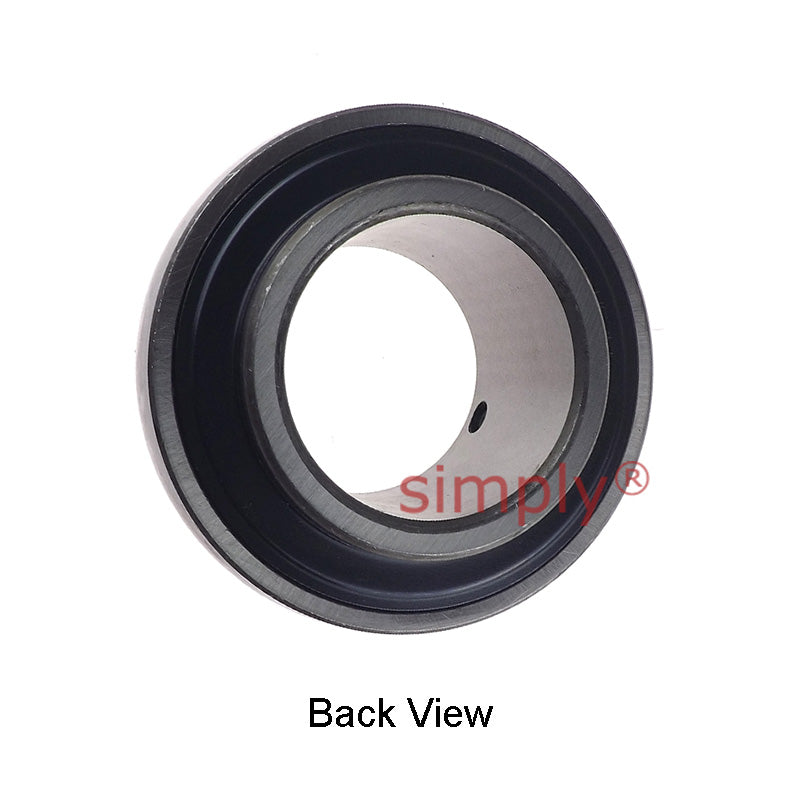

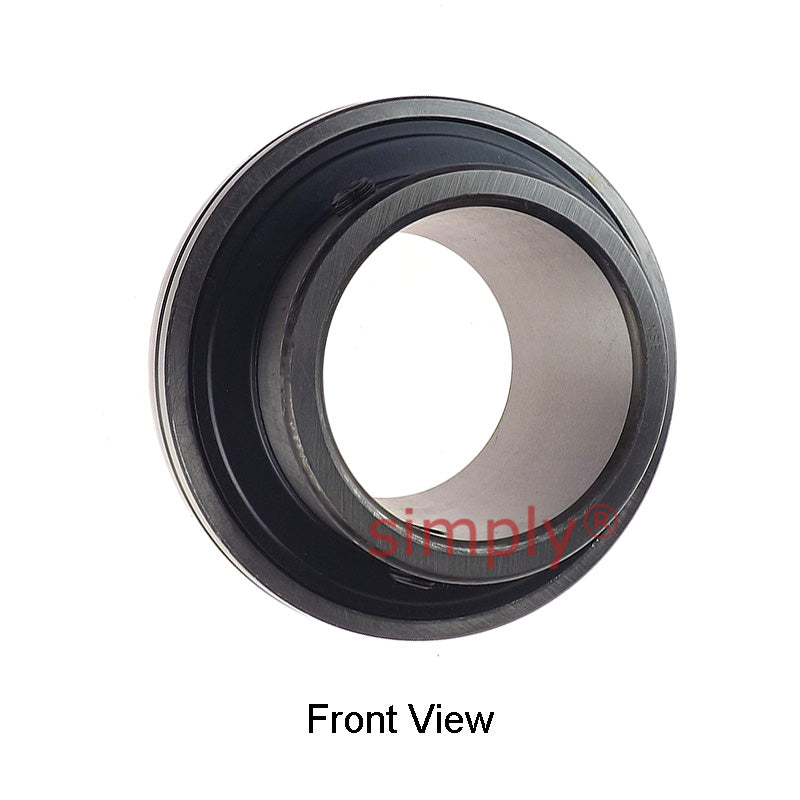

UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
In stock
Quantity Price Breaks
3
€38.80
4
€36.62
9
€36.19
19
€35.75
49
€35.32
99
€34.88
499
€32.70
999
€32.26
1999
€31.83
2999
€31.39
4999
€30.52
SKU:
UC.213
UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 65mm |
| D | = | 120mm |
| Bi | = | 65.1mm |
| Be | = | 28mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | M10x1.0 |
| Weight | = | 1.86 kg |
| Dynamic load | = | 4480 kgf |
| Static load | = | 3470 kgf |
