SKU: UC.213-40

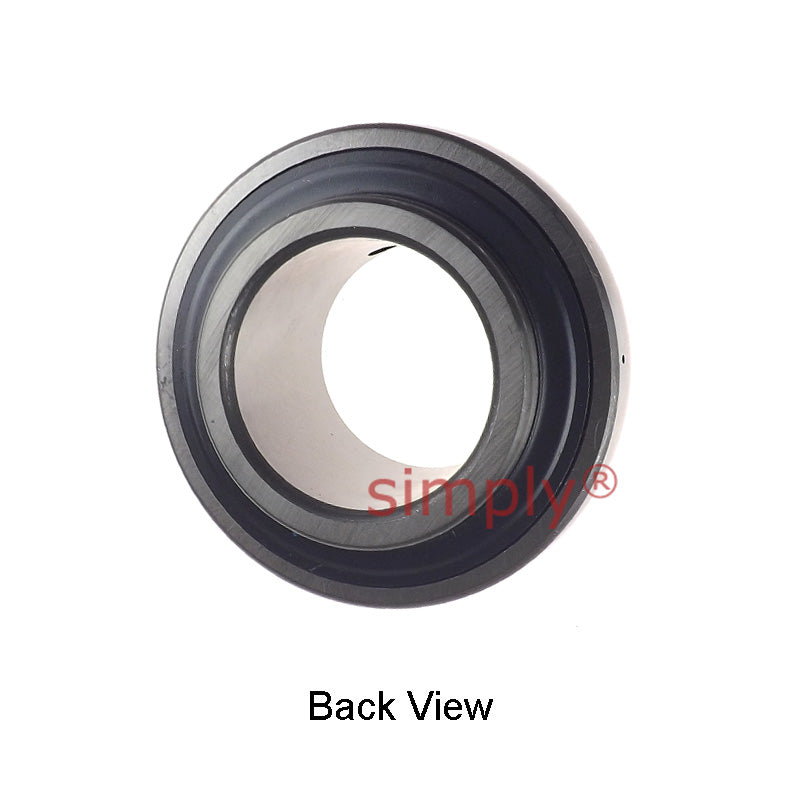

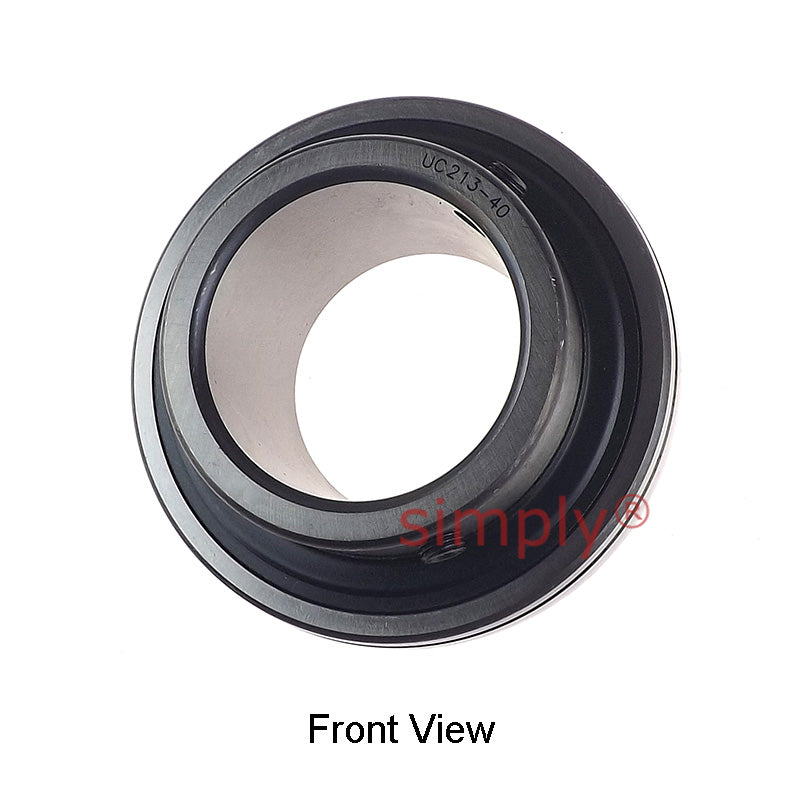

UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
- Regular price
- €44.49 ex VAT
- Sale price
- €44,49
- Regular price
-
Not in stock
Quantity Price Breaks
3
€39.60
4
€37.37
9
€36.93
19
€36.48
49
€36.04
99
€35.59
499
€33.37
999
€32.92
1999
€32.48
2999
€32.03
4999
€31.14
SKU:
UC.213-40
UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
- Regular price
- €44.49 ex VAT
- Sale price
- €44,49
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 2-1/2 inch |
| D | = | 120mm |
| Bi | = | 65.1mm |
| Be | = | 28mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | 3/8" |
| -24 UNF | = | Weight |
| 1.94 kg | = | Dynamic load |
| 4480 kgf | = | Static load |
| 3470 kgf | = | N/A |
