SKU: UC.217

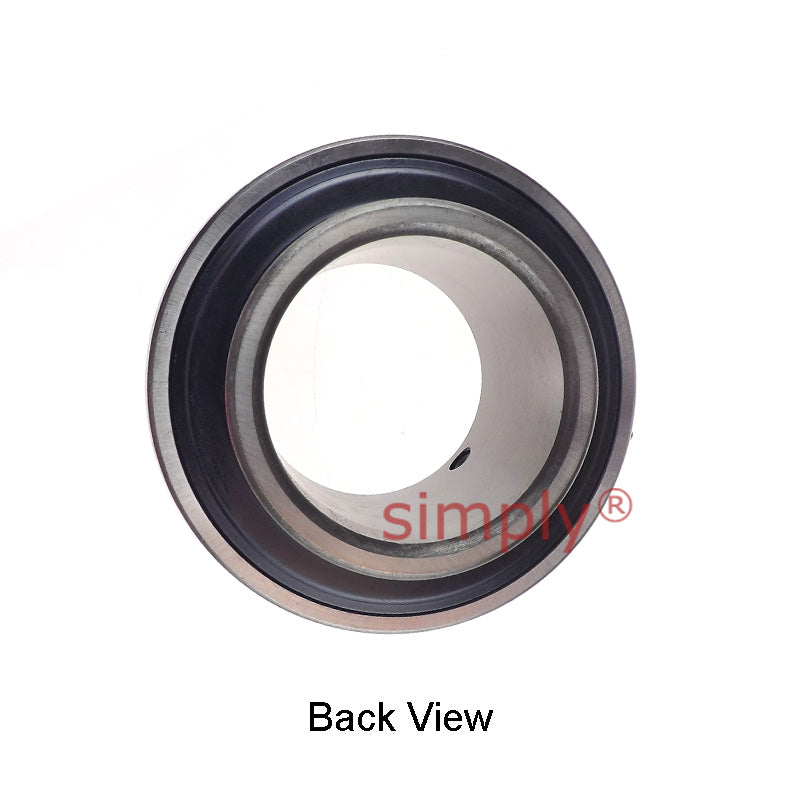

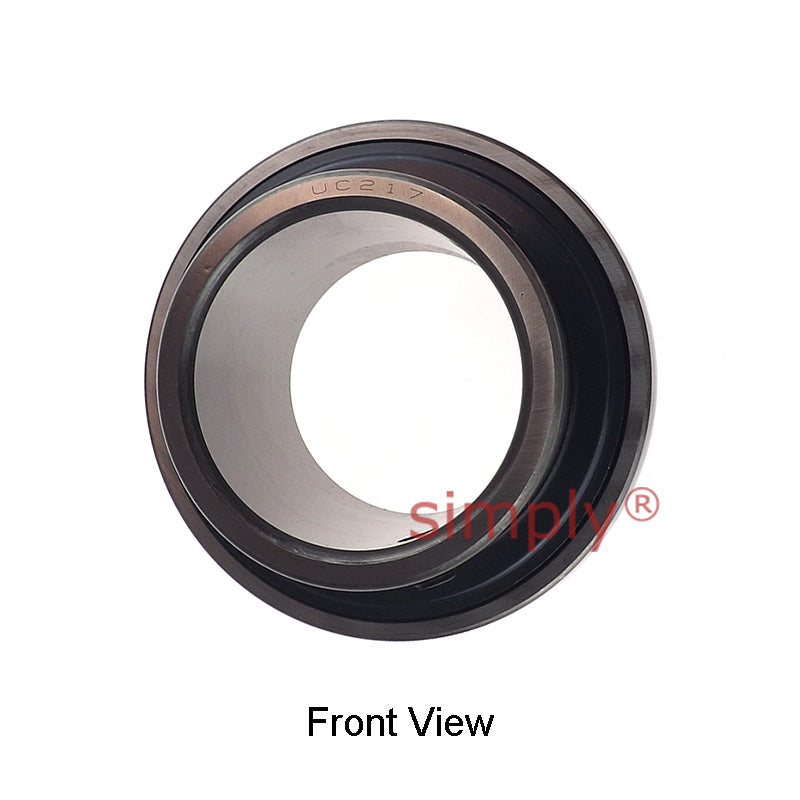

UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
- Regular price
- €129.79 ex VAT
- Sale price
- €129,79
- Regular price
-
In stock
Quantity Price Breaks
3
€115.51
4
€109.02
9
€107.73
19
€106.43
49
€105.13
99
€103.83
499
€97.34
999
€96.04
1999
€94.75
2999
€93.45
4999
€90.85
SKU:
UC.217
UC217 Metric Bearing Insert with 85mm Bore 150mm Outside Dia
- Regular price
- €129.79 ex VAT
- Sale price
- €129,79
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 85mm |
| D | = | 150mm |
| Bi | = | 85mm |
| Be | = | 35mm |
| n | = | 34.1mm |
| m | = | 51.6mm |
| G | = | 14mm |
| Grub screw | = | M12x1.5 |
| Weight | = | 3.45 kg |
| Dynamic load | = | 6600 kgf |
| Static load | = | 5320 kgf |
