SKU: UC.308

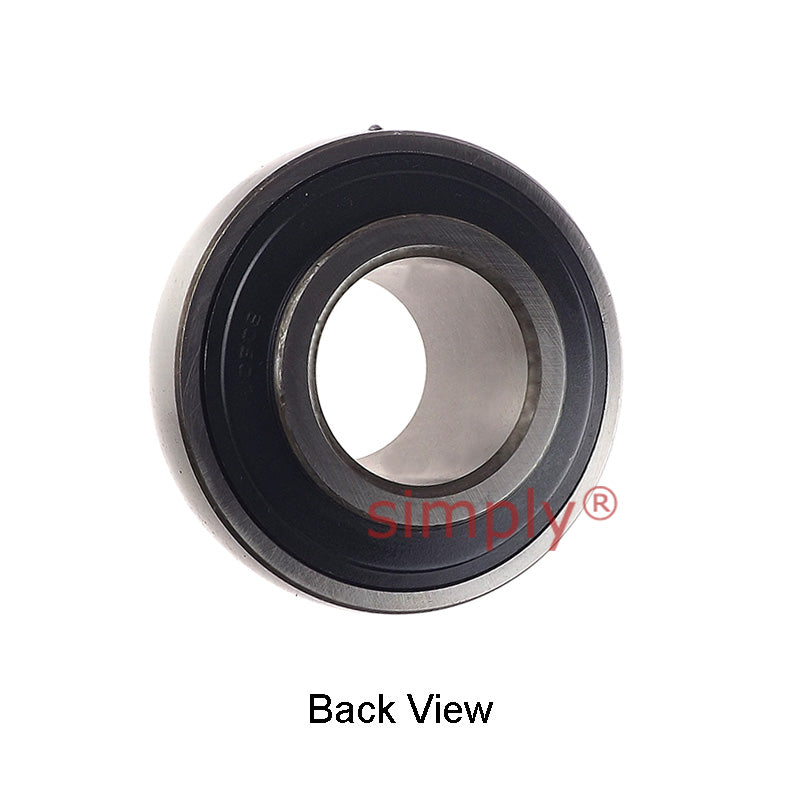

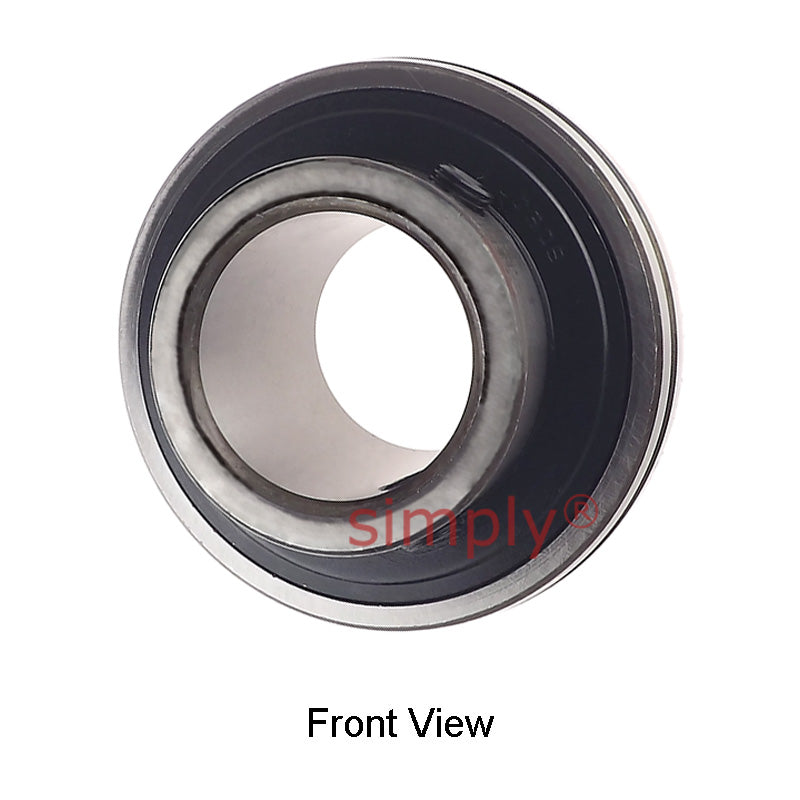

UC308 Heavy Duty Metric Bearing Insert With 40mm Bore 90mm Outside Dia
- Regular price
- €29.72 ex VAT
- Sale price
- €29,72
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€26.45
4
€24.96
9
€24.67
19
€24.37
49
€24.07
99
€23.78
499
€22.29
999
€21.99
1999
€21.70
2999
€21.40
4999
€20.80
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| d | = | 40mm |
| D | = | 90mm |
| Bi | = | 52mm |
| Be | = | 28mm |
| n | = | 19mm |
| m | = | 33mm |
| G | = | 10mm |
| Grub screw | = | M10x1.25 |
| Weight | = | 1.00 kg |
| Dynamic load | = | 3200 kgf |
| Static load | = | 2280 kgf |
