SKU: UC.311

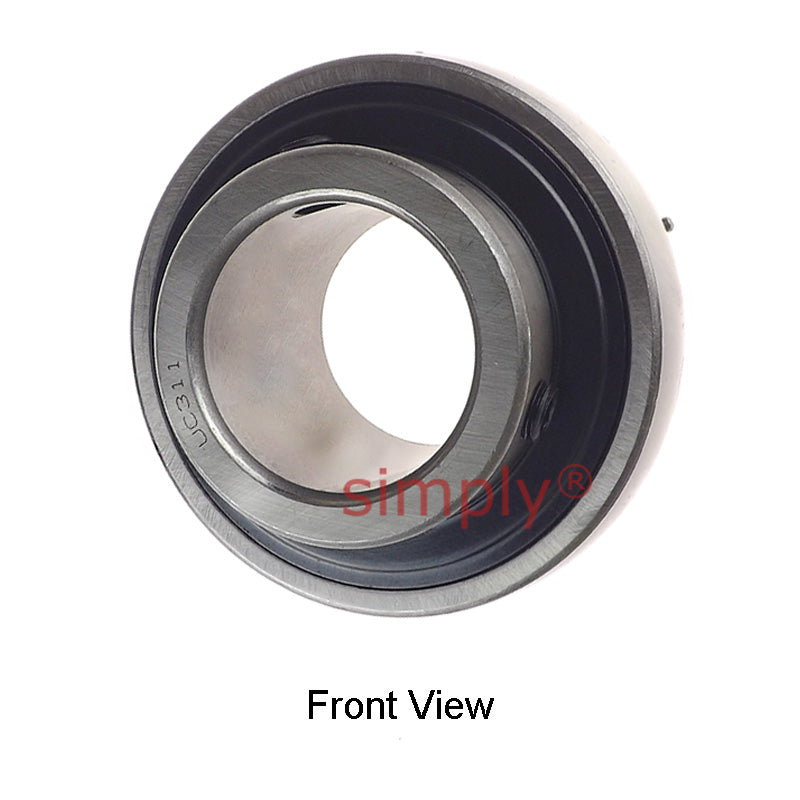

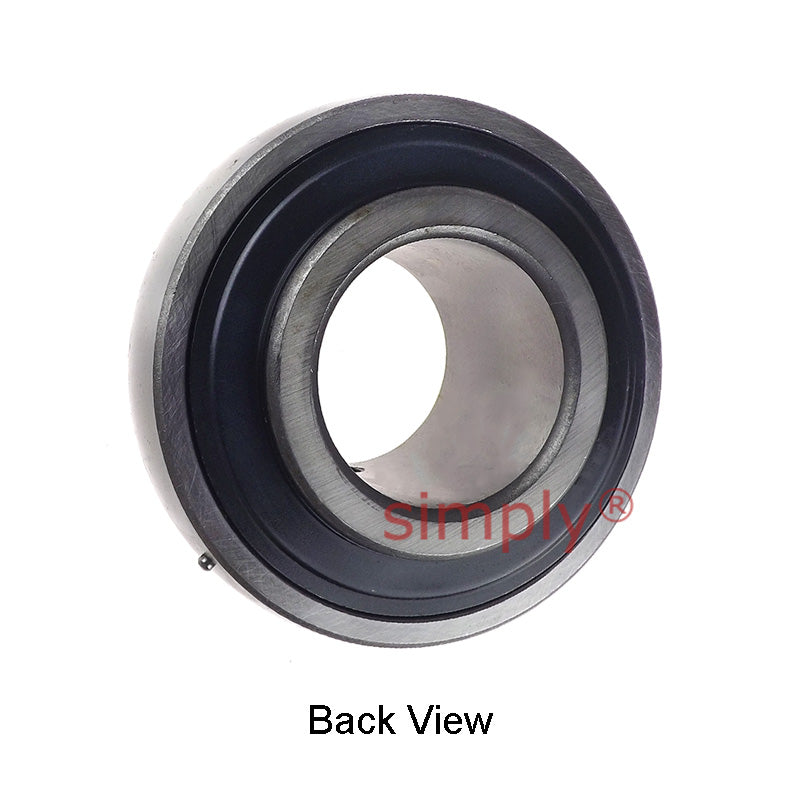

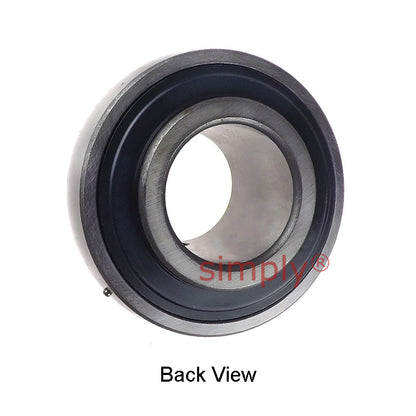

UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia
- Regular price
- €47.30 ex VAT
- Sale price
- €47,30
- Regular price
-
In stock
Quantity Price Breaks
3
€42.10
4
€39.73
9
€39.26
19
€38.79
49
€38.31
99
€37.84
499
€35.48
999
€35.00
1999
€34.53
2999
€34.06
4999
€33.11
SKU:
UC.311
UC311 Heavy Duty Metric Bearing Insert With 55mm Bore 120mm Outside Dia
- Regular price
- €47.30 ex VAT
- Sale price
- €47,30
- Regular price
-
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| d | = | 55mm |
| D | = | 120mm |
| Bi | = | 66mm |
| Be | = | 34mm |
| n | = | 25mm |
| m | = | 41mm |
| G | = | 12mm |
| Grub screw | = | M12x1.5 |
| Weight | = | 1.90 kg |
| Dynamic load | = | 5260 kgf |
| Static load | = | 4280 kgf |
