SKU: UC.317

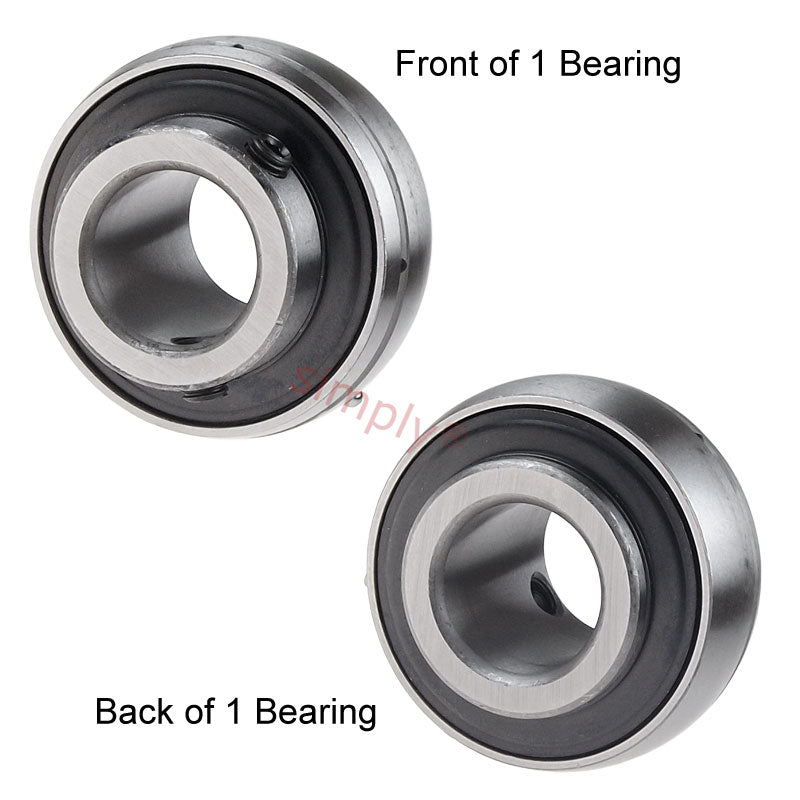

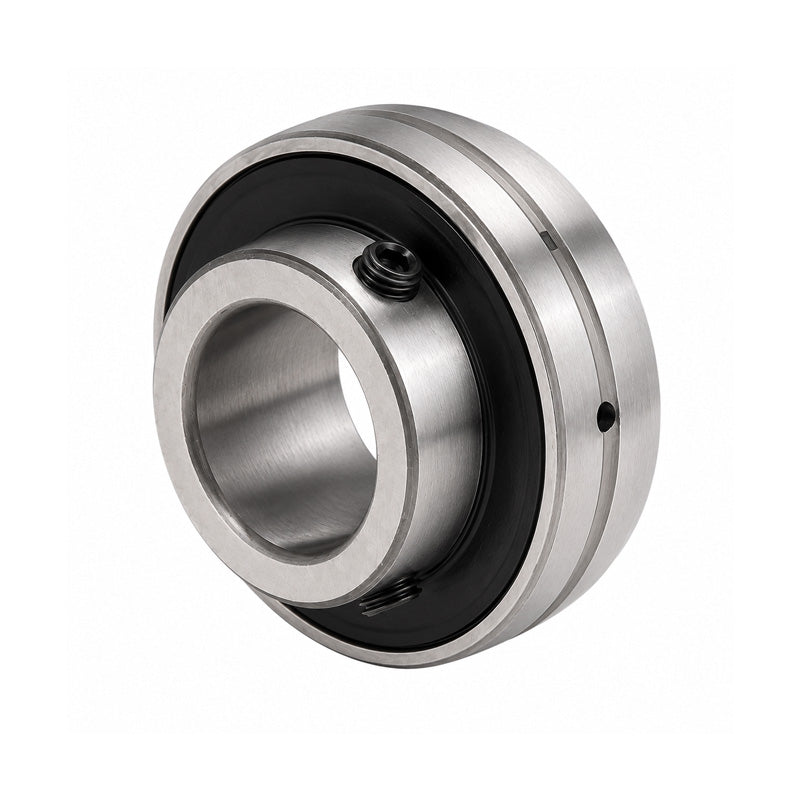

UC317 Heavy Duty Metric Bearing Insert With 85mm Bore 180mm Outside Dia
- Regular price
- €170.86 ex VAT
- Sale price
- €170,86
- Regular price
-
Not in stock
Quantity Price Breaks
3
€152.07
4
€143.52
9
€141.81
19
€140.11
49
€138.40
99
€136.69
499
€128.15
999
€126.44
1999
€124.73
2999
€123.02
4999
€119.60
SKU:
UC.317
UC317 Heavy Duty Metric Bearing Insert With 85mm Bore 180mm Outside Dia
- Regular price
- €170.86 ex VAT
- Sale price
- €170,86
- Regular price
-
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| d | = | 85mm |
| D | = | 180mm |
| Bi | = | 96mm |
| Be | = | 46mm |
| n | = | 40mm |
| m | = | 56mm |
| G | = | 16mm |
| Grub screw | = | M16x1.5 |
| Weight | = | 6.9 kg |
| Dynamic load | = | 10410 kgf |
| Static load | = | 9130 kgf |
