SKU: UC.318

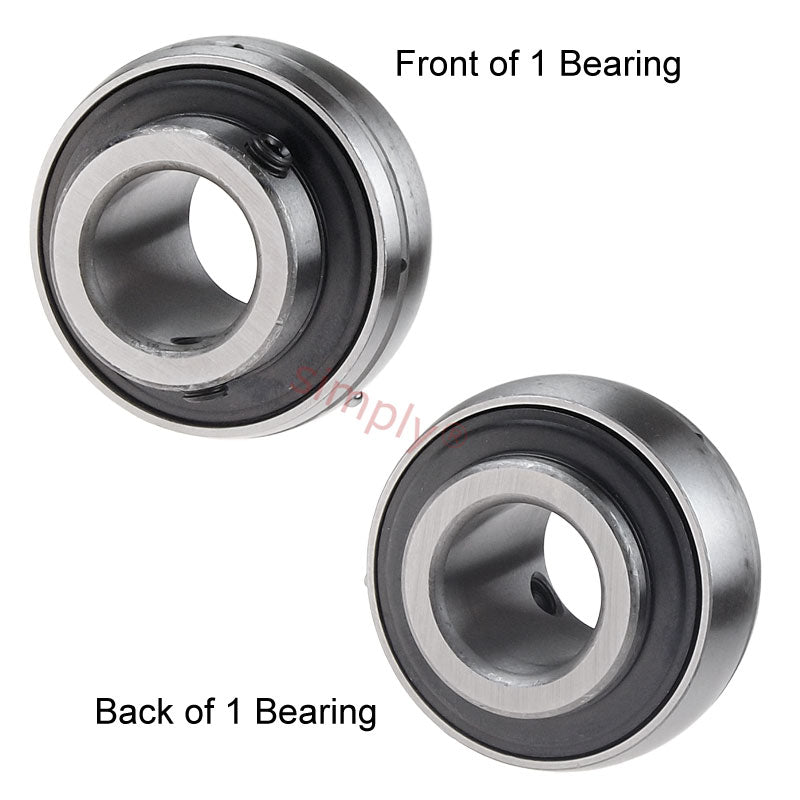

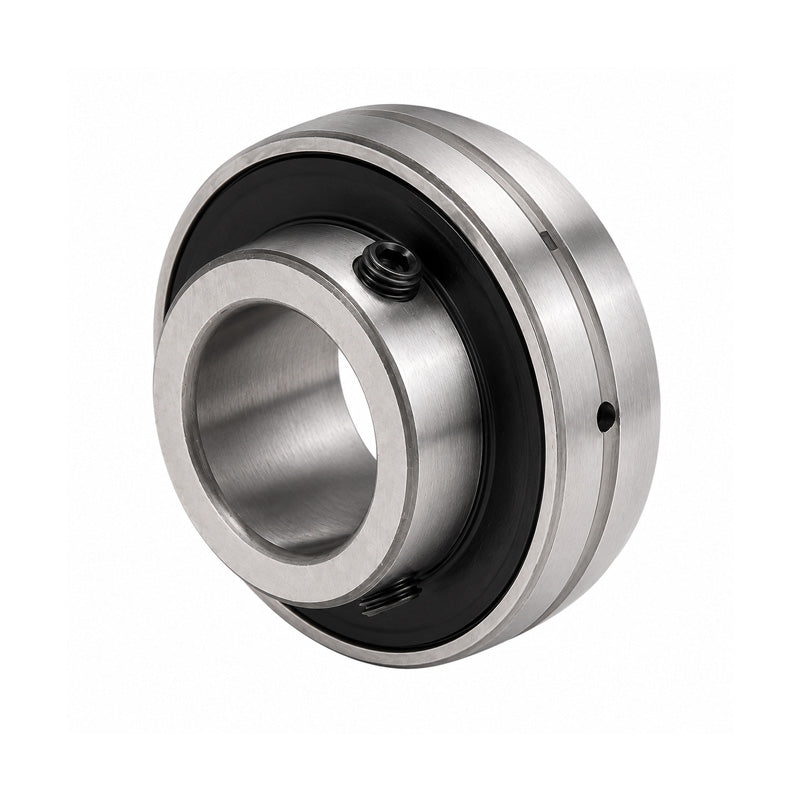

UC318 Heavy Duty Metric Bearing Insert With 90mm Bore 190mm Outside Dia
- Regular price
- €251.59 ex VAT
- Sale price
- €251,59
- Regular price
-
Not in stock
Quantity Price Breaks
3
€223.92
4
€211.34
9
€208.82
19
€206.30
49
€203.79
99
€201.27
499
€188.69
999
€186.18
1999
€183.66
2999
€181.14
4999
€176.11
SKU:
UC.318
UC318 Heavy Duty Metric Bearing Insert With 90mm Bore 190mm Outside Dia
- Regular price
- €251.59 ex VAT
- Sale price
- €251,59
- Regular price
-
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| d | = | 90mm |
| D | = | 190mm |
| Bi | = | 96mm |
| Be | = | 48mm |
| n | = | 40mm |
| m | = | 56mm |
| G | = | 16mm |
| Grub screw | = | M16x1.5 |
| Weight | = | 7.87 kg |
| Dynamic load | = | 11300 kgf |
| Static load | = | 10300 kgf |
