SKU: UCC208

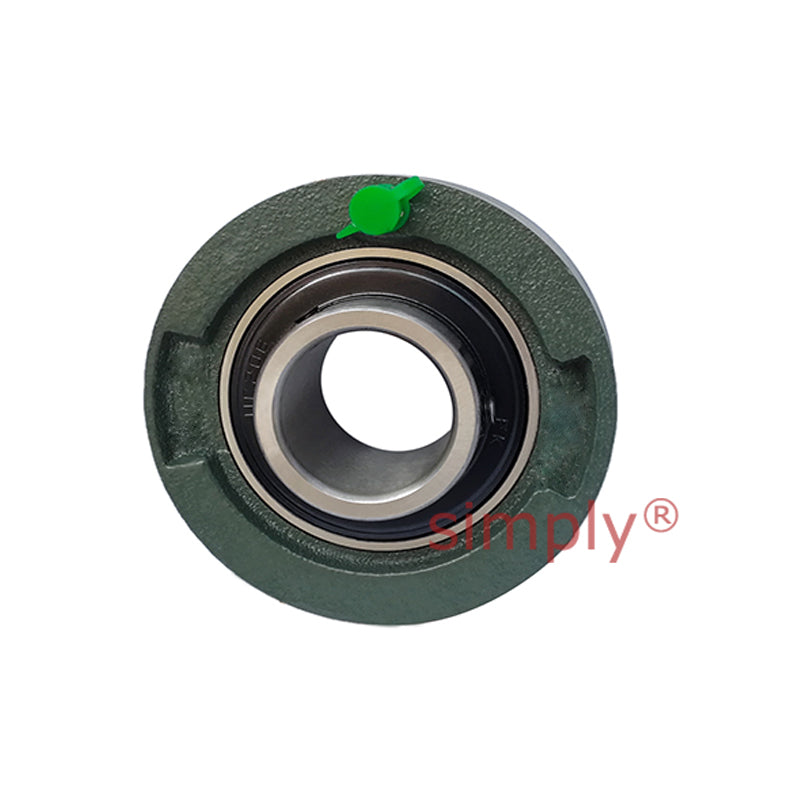

UCC208 Metric Cast Iron Normal Duty Cartridge Unit with 40mm Bore Insert 100mm Outside Dia
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
Quantity Price Breaks
UCC208 Metric Cast Iron Normal Duty Cartridge Unit with 40mm Bore Insert 100mm Outside Dia
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Technical
| Bore d | = | 40mm |
| Outer Dia a | = | 100mm |
| g | = | 30mm |
| r | = | 2.5mm |
| B | = | 49.2mm |
| n | = | 19mm |
| Bearing No | = | UC208 |
| Housing No | = | C208 |
