SKU: UCC208-24

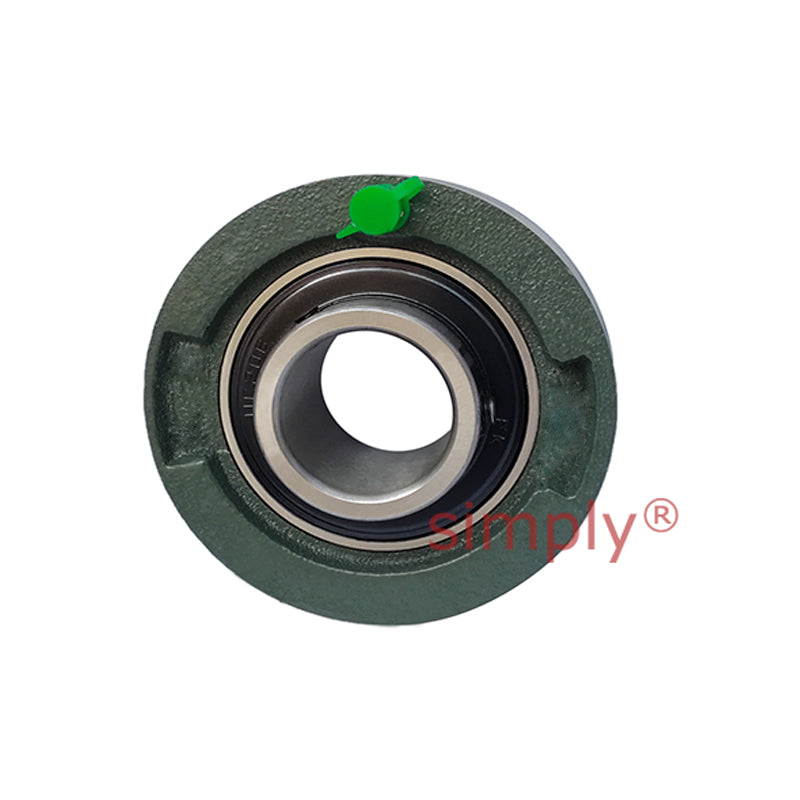

UCC208-24 Imperial Cast Iron Normal Duty Cartridge Unit with 1-1/2 inch Bore Insert 3.937 inch Outside Dia
- Regular price
- €25.35 ex VAT
- Sale price
- €25,35
- Regular price
-
Quantity Price Breaks
UCC208-24 Imperial Cast Iron Normal Duty Cartridge Unit with 1-1/2 inch Bore Insert 3.937 inch Outside Dia
- Regular price
- €25.35 ex VAT
- Sale price
- €25,35
- Regular price
-
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Technical
| Bore d | = | 1-1/2 inch |
| Outer Dia a | = | 3.937 inch |
| g | = | 1-3/16 inch |
| r | = | 0.098 inch |
| B | = | 1.937 inch |
| n | = | 0.748 inch |
| Bearing No | = | UC208-24 |
| Housing No | = | C208 |
