SKU: UCC212-SNR
SNR UCC212 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
- Regular price
- €78.85 ex VAT
- Sale price
- €78,85
- Regular price
-
Quantity Price Breaks
SNR UCC212 Metric Cast Iron Cartridge Unit with 60mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
- Regular price
- €78.85 ex VAT
- Sale price
- €78,85
- Regular price
-
Description

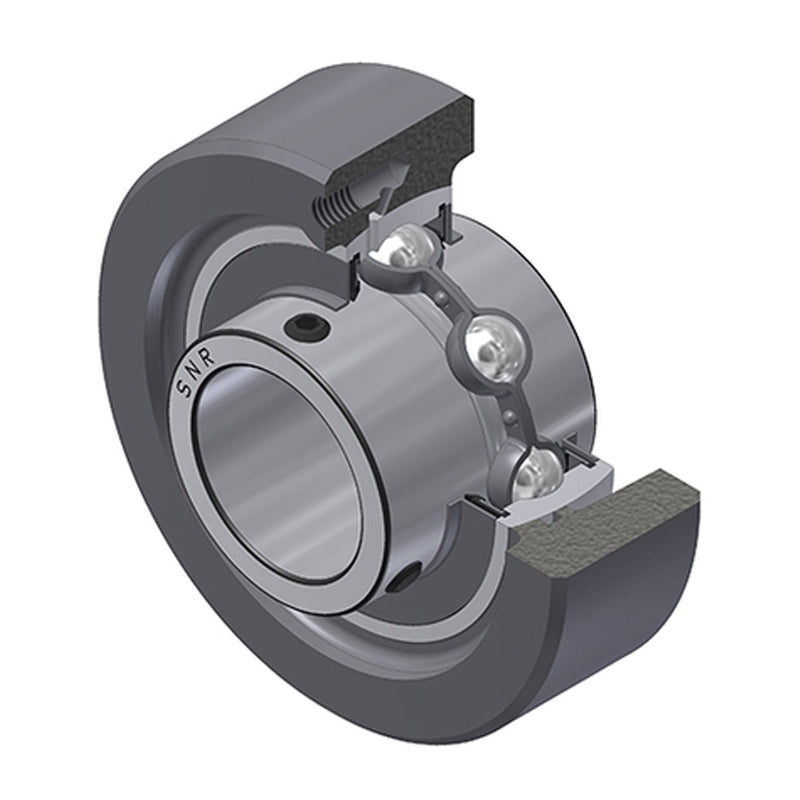

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 38mm |
| A3 | = | 2mm |
| B | = | 65.1mm |
| H | = | 130mm |
| S | = | 25.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 2.53 kg |
