SKU: UCEHE202-SNR

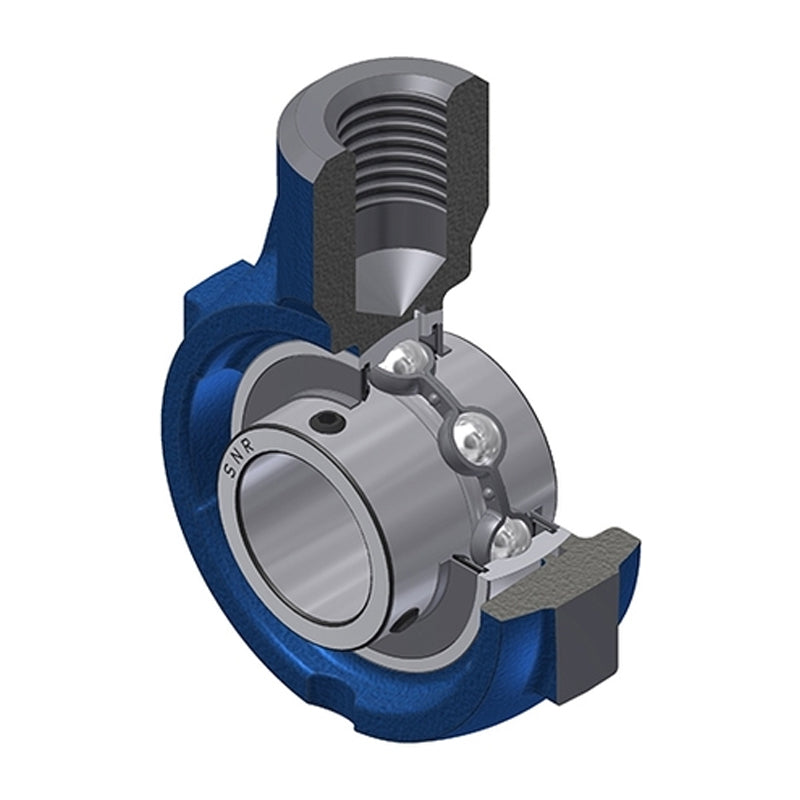

SNR UCEHE202 Metric Cast Iron Hanger Bearing Unit with 15mm Bore Insert
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
In stock
Quantity Price Breaks
3
€25.87
4
€24.42
9
€24.13
19
€23.84
49
€23.55
99
€23.26
499
€21.80
999
€21.51
1999
€21.22
2999
€20.93
4999
€20.35
SKU:
UCEHE202-SNR
SNR UCEHE202 Metric Cast Iron Hanger Bearing Unit with 15mm Bore Insert
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

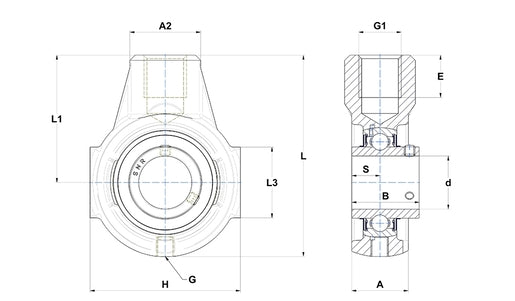

Technical
| --- | = | Dimensions |
| Shaft diameter | = | 15mm |
| A | = | 25mm |
| A2 | = | 30mm |
| B | = | 31mm |
| E | = | 21mm |
| H | = | 65mm |
| L | = | 91mm |
| L1 | = | 58mm |
| L3 | = | 38mm |
| S | = | 12.7mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M16 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 0.6 kg |
