SKU: UCEHE206-SNR

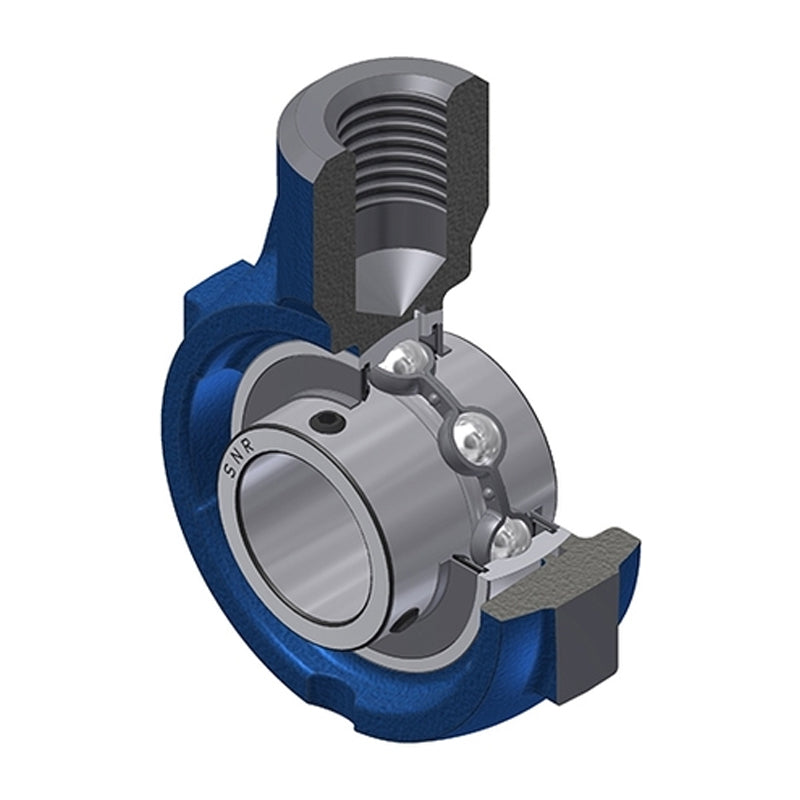

SNR UCEHE206 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
UCEHE206-SNR
SNR UCEHE206 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 30mm |
| A | = | 32mm |
| A2 | = | 40mm |
| B | = | 38.1mm |
| E | = | 24mm |
| H | = | 85mm |
| L | = | 114mm |
| L1 | = | 72mm |
| L3 | = | 40mm |
| S | = | 15.9mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.02 kg |
