SKU: UCEHE208-SNR

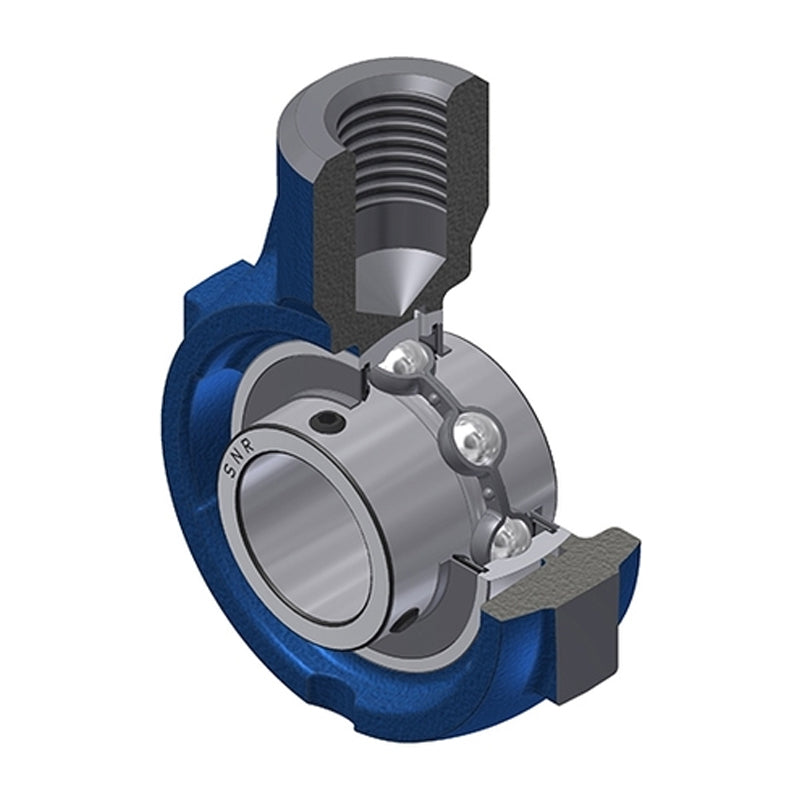

SNR UCEHE208 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Not in stock
Quantity Price Breaks
3
€48.51
4
€45.78
9
€45.24
19
€44.69
49
€44.15
99
€43.60
499
€40.88
999
€40.33
1999
€39.79
2999
€39.24
4999
€38.15
SKU:
UCEHE208-SNR
SNR UCEHE208 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| A | = | 36mm |
| A2 | = | 40mm |
| B | = | 49.2mm |
| E | = | 24mm |
| H | = | 100mm |
| L | = | 135mm |
| L1 | = | 85mm |
| L3 | = | 45mm |
| S | = | 19mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.54 kg |
