SKU: UCEHE210-SNR

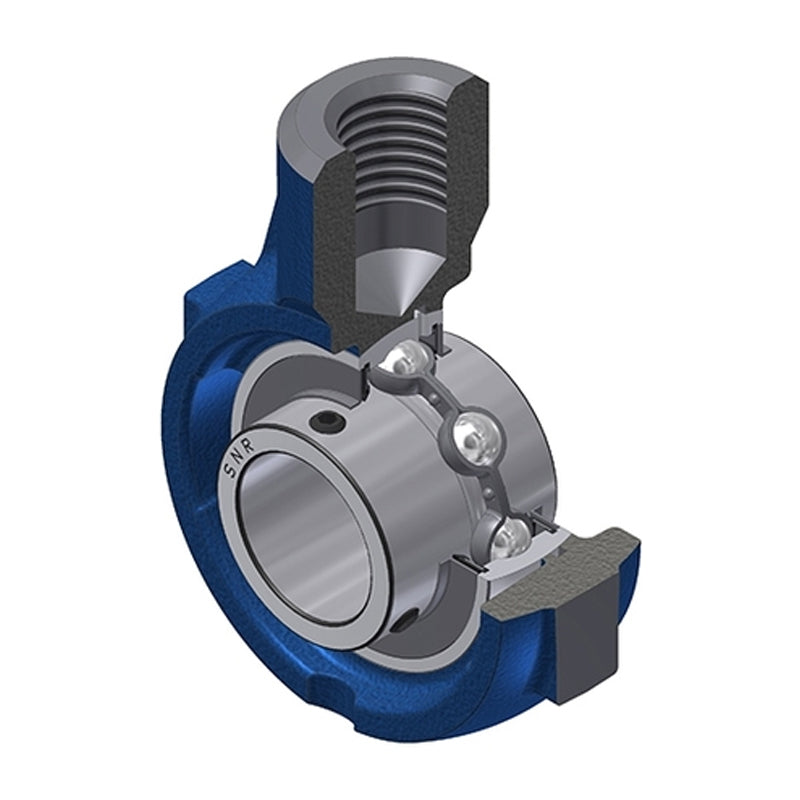

SNR UCEHE210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €61.95 ex VAT
- Sale price
- €61,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€55.14
4
€52.04
9
€51.42
19
€50.80
49
€50.18
99
€49.56
499
€46.46
999
€45.84
1999
€45.22
2999
€44.60
4999
€43.37
SKU:
UCEHE210-SNR
SNR UCEHE210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €61.95 ex VAT
- Sale price
- €61,95
- Regular price
-
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 40mm |
| A2 | = | 40mm |
| B | = | 51.6mm |
| E | = | 24mm |
| H | = | 110mm |
| L | = | 145mm |
| L1 | = | 90mm |
| L3 | = | 46mm |
| S | = | 19mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.8 kg |
