SKU: UCF.203-11

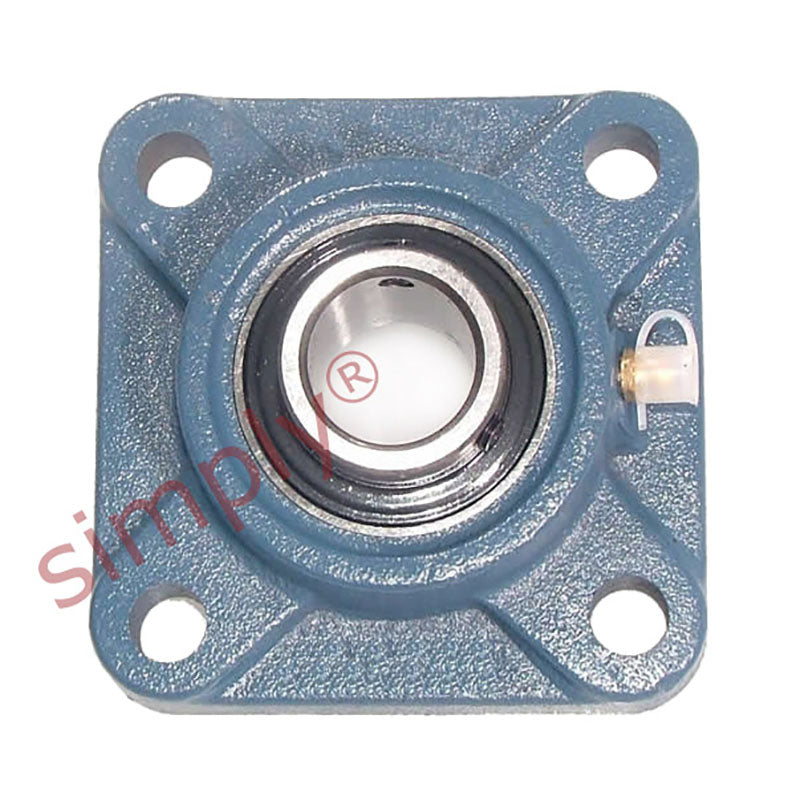

UCF203-11 Imperial Four Bolt Square Cast Iron Flange Housing with 11/16 inch Bore Insert
- Regular price
- €13.08 ex VAT
- Sale price
- €13,08
- Regular price
-
Not in stock
Quantity Price Breaks
3
€11.64
4
€10.99
9
€10.86
19
€10.73
49
€10.59
99
€10.46
499
€9.81
999
€9.68
1999
€9.55
2999
€9.42
4999
€9.16
SKU:
UCF.203-11
UCF203-11 Imperial Four Bolt Square Cast Iron Flange Housing with 11/16 inch Bore Insert
- Regular price
- €13.08 ex VAT
- Sale price
- €13,08
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 11/16 inch |
| a | = | 86mm |
| e | = | 64mm |
| i | = | 15mm |
| g | = | 12mm |
| L | = | 25.6mm |
| S | = | 12mm |
| Z | = | 33.3mm |
| Bi | = | 31mm |
| n | = | 12.7mm |
| Bolt Size | = | M10 |
| Weight | = | 0.63 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
