SKU: UCFA204-12

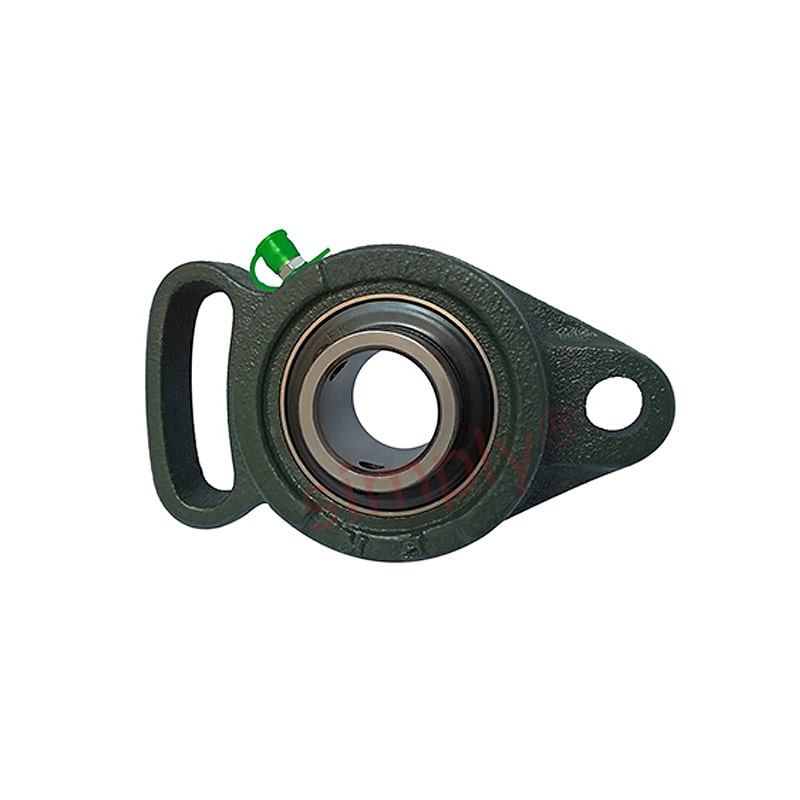

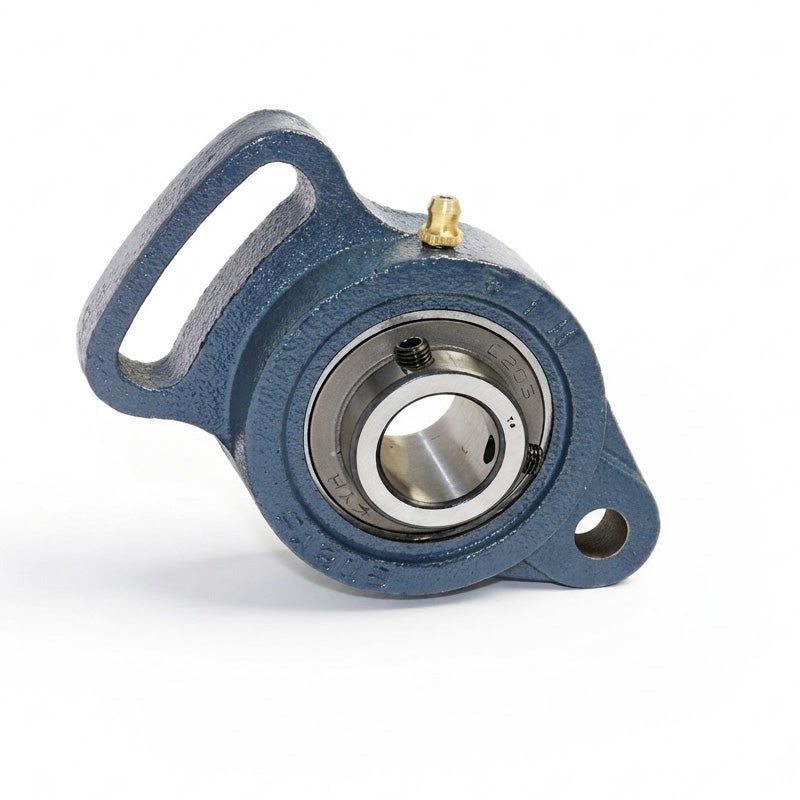

UCFA204-12 Imperial Cast Iron Adjustable Flange Unit with 3/4 inch Insert
- Regular price
- €14.97 ex VAT
- Sale price
- €14,97
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€13.32
4
€12.57
9
€12.43
19
€12.28
49
€12.13
99
€11.98
499
€11.23
999
€11.08
1999
€10.93
2999
€10.78
4999
€10.48
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 3/4 inch |
| a | = | 3-55/64 inch |
| e | = | 3-5/64 inch |
| i | = | 19/32 inch |
| g | = | 15/32 inch |
| l | = | 1 inch |
| s | = | 25/64 inch |
| b | = | 2-3/8 inch |
| z | = | 1-5/16 inch |
| f | = | 1-37/64 inch |
| c | = | 1-31/32 inch |
| B | = | 1.2205 inch |
| n | = | 0.5 inch |
| Bolt size | = | 5/16 inch |
| Bearing no | = | UC204-12 |
| Housing no | = | FA204 |
| Weight | = | 0.42 kg |
