SKU: UCFA206-17

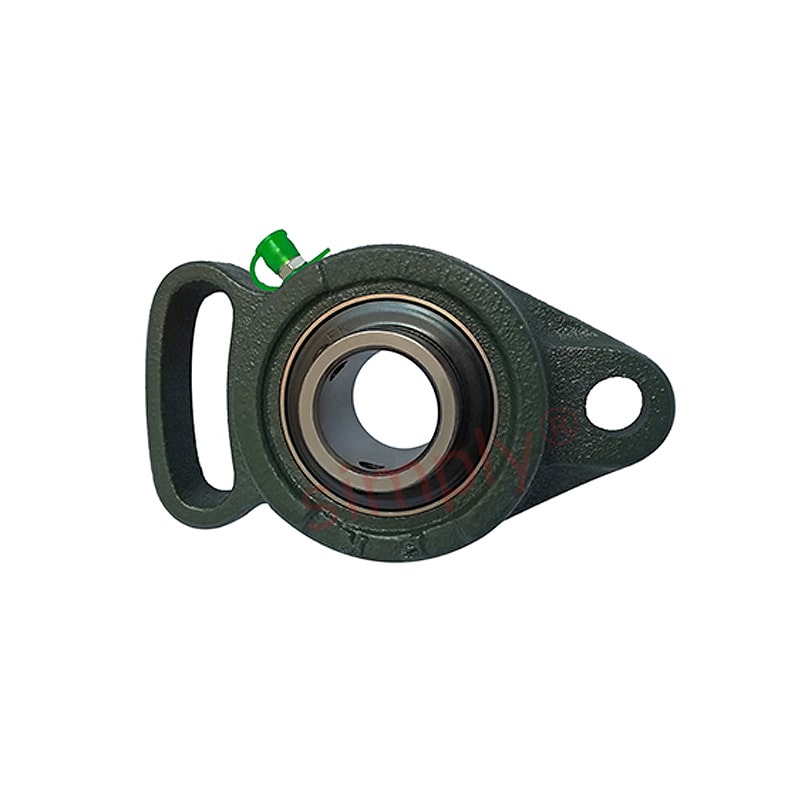

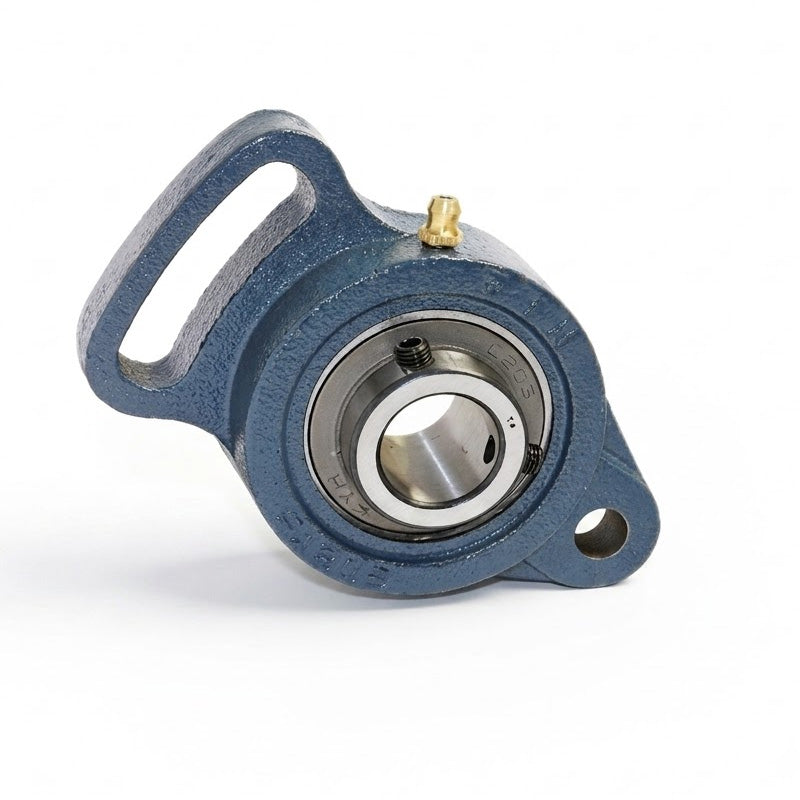

UCFA206-17 Imperial Cast Iron Adjustable Flange Unit with 1-1/16 inch Insert
- Regular price
- €18.30 ex VAT
- Sale price
- €18,30
- Regular price
-
Not in stock
Quantity Price Breaks
3
€16.29
4
€15.37
9
€15.19
19
€15.01
49
€14.82
99
€14.64
499
€13.73
999
€13.54
1999
€13.36
2999
€13.18
4999
€12.81
SKU:
UCFA206-17
UCFA206-17 Imperial Cast Iron Adjustable Flange Unit with 1-1/16 inch Insert
- Regular price
- €18.30 ex VAT
- Sale price
- €18,30
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-1/16 inch |
| a | = | 5-35/64 inch |
| e | = | 4-17/32 inch |
| i | = | 45/64 inch |
| g | = | 35/64 inch |
| l | = | 1-7/32 inch |
| s | = | 33/64 inch |
| b | = | 3-17/64 inch |
| z | = | 1-19/32 inch |
| f | = | 2-9/32 inch |
| c | = | 2-27/32 inch |
| B | = | 1.5 inch |
| n | = | 0.626 inch |
| Bolt size | = | 3/8 inch |
| Bearing no | = | UC206-17 |
| Housing no | = | FA206 |
| Weight | = | 0.98 kg |
