SKU: UCFB203-11

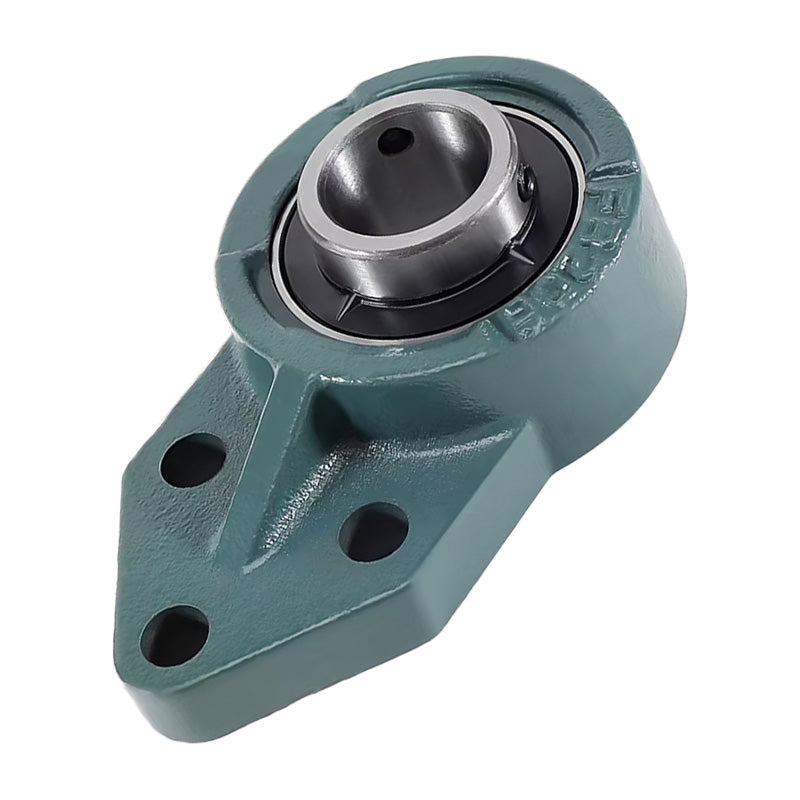

UCFB203-11 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 11/16 inch Bore
- Regular price
- €17.49 ex VAT
- Sale price
- €17,49
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€15.57
4
€14.69
9
€14.52
19
€14.34
49
€14.17
99
€13.99
499
€13.12
999
€12.94
1999
€12.77
2999
€12.59
4999
€12.24
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 11/16 inch |
| w | = | 4-11/32 inch |
| b | = | 2-7/16 inch |
| k | = | 2-1/16 inch |
| a | = | 2-1/16 inch |
| l | = | 1 inch |
| s | = | 25/64 inch |
| g | = | 1/2 inch |
| h | = | 1-21/32 inch |
| j | = | 1-1/16 inch |
| e | = | 1-17/64 inch |
| i | = | 19/32 inch |
| z | = | 1-5/16 inch |
| B | = | 1.2205 inch |
| n | = | 0.5 inch |
| Bolt size | = | 5/16 inch |
| Bearing no | = | UC203-11 |
| Housing no | = | FB203 |
| Weight | = | 0.557 kg |
