SKU: UCFB204
UCFB204 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
- Regular price
- €12.54 ex VAT
- Sale price
- €12,54
- Regular price
-
In stock
Quantity Price Breaks
3
€11.16
4
€10.53
9
€10.41
19
€10.28
49
€10.16
99
€10.03
499
€9.41
999
€9.28
1999
€9.15
2999
€9.03
4999
€8.78
SKU:
UCFB204
UCFB204 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
- Regular price
- €12.54 ex VAT
- Sale price
- €12,54
- Regular price
-
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

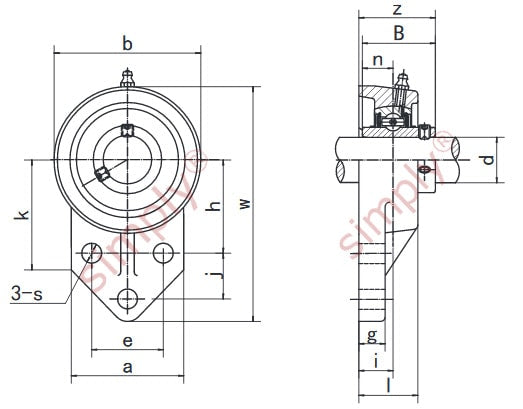

Technical
| d | = | 20mm |
| w | = | 4-11/32 inch |
| b | = | 2-7/16 inch |
| k | = | 2-1/16 inch |
| a | = | 2-1/16 inch |
| l | = | 1 inch |
| s | = | 25/64 inch |
| g | = | 1/2 inch |
| h | = | 1-21/32 inch |
| j | = | 1-1/16 inch |
| e | = | 1-17/64 inch |
| i | = | 19/32 inch |
| z | = | 1-5/16 inch |
| B | = | 1.2205 inch |
| n | = | 0.5 inch |
| Bolt size | = | 5/16 inch |
| Bearing no | = | UC204 |
| Housing no | = | FB204 |
| Weight | = | 0.546 kg |
