SKU: UCFB205

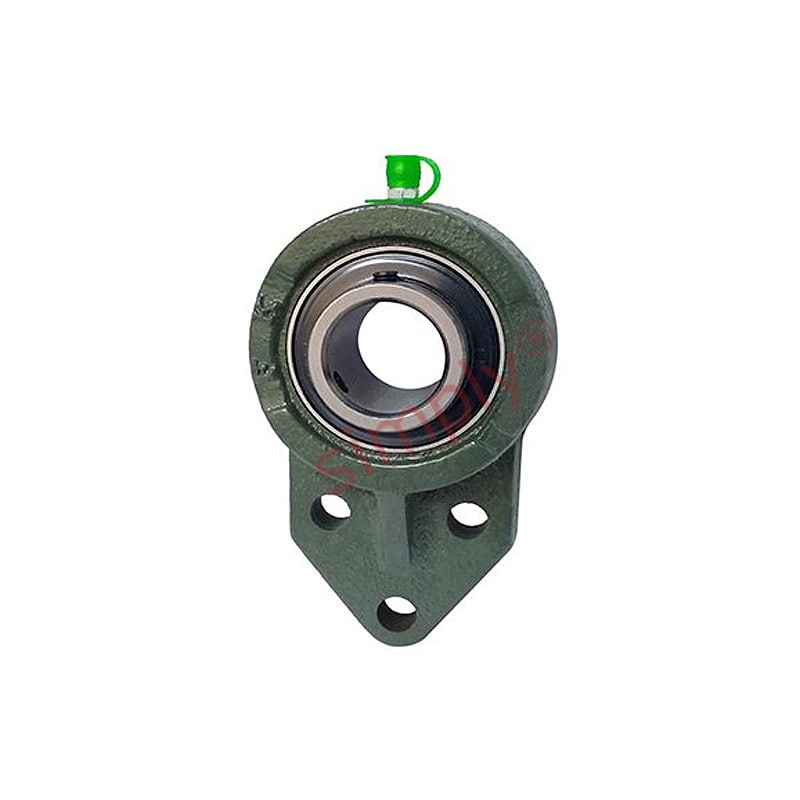

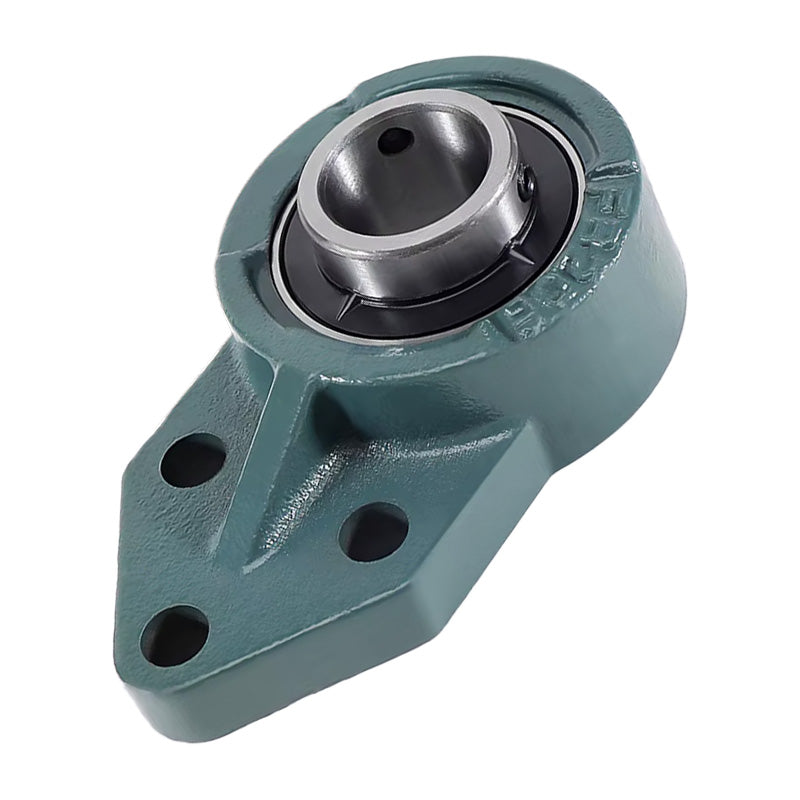

UCFB205 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
- Regular price
- €16.77 ex VAT
- Sale price
- €16,77
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€14.93
4
€14.09
9
€13.92
19
€13.75
49
€13.58
99
€13.42
499
€12.58
999
€12.41
1999
€12.24
2999
€12.07
4999
€11.74
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 25mm |
| w | = | 116mm |
| b | = | 68mm |
| k | = | 52mm |
| a | = | 56mm |
| l | = | 27mm |
| s | = | 10mm |
| g | = | 13mm |
| h | = | 45mm |
| j | = | 27mm |
| e | = | 34mm |
| i | = | 16mm |
| z | = | 35.8mm |
| B | = | 34.1mm |
| n | = | 14.3mm |
| Bolt size | = | M8 |
| Bearing no | = | UC205 |
| Housing no | = | FB205 |
| Weight | = | 0.637 kg |
