SKU: UCFB209

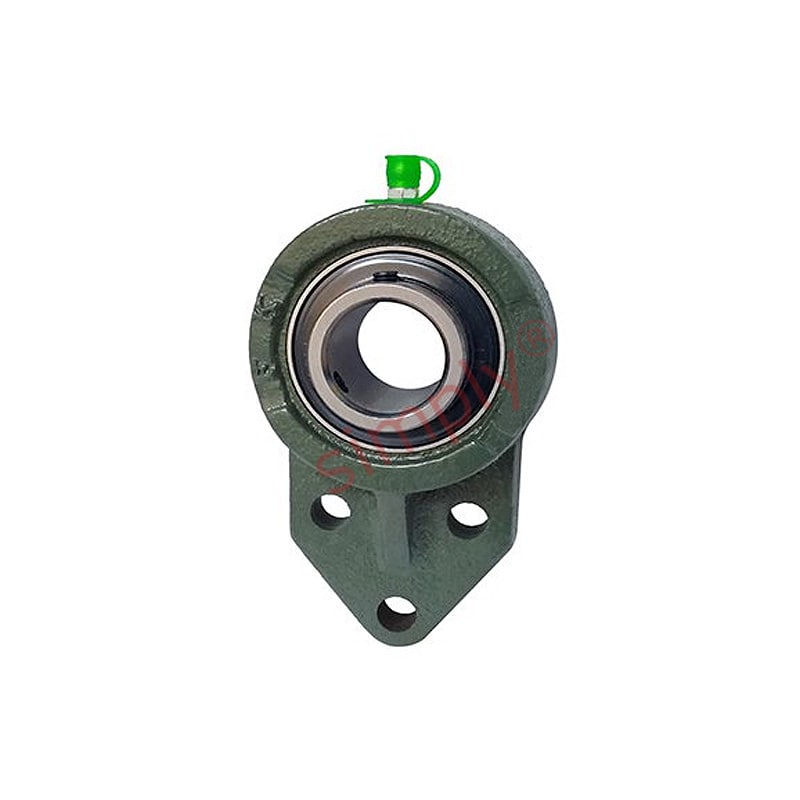

UCFB209 Metric 3 Bolt Cast Iron Bracket Flange Bearing 45mm Bore
- Regular price
- €28.13 ex VAT
- Sale price
- €28,13
- Regular price
-
Not in stock
Quantity Price Breaks
3
€25.04
4
€23.63
9
€23.35
19
€23.07
49
€22.79
99
€22.50
499
€21.10
999
€20.82
1999
€20.53
2999
€20.25
4999
€19.69
SKU:
UCFB209
UCFB209 Metric 3 Bolt Cast Iron Bracket Flange Bearing 45mm Bore
- Regular price
- €28.13 ex VAT
- Sale price
- €28,13
- Regular price
-
Description

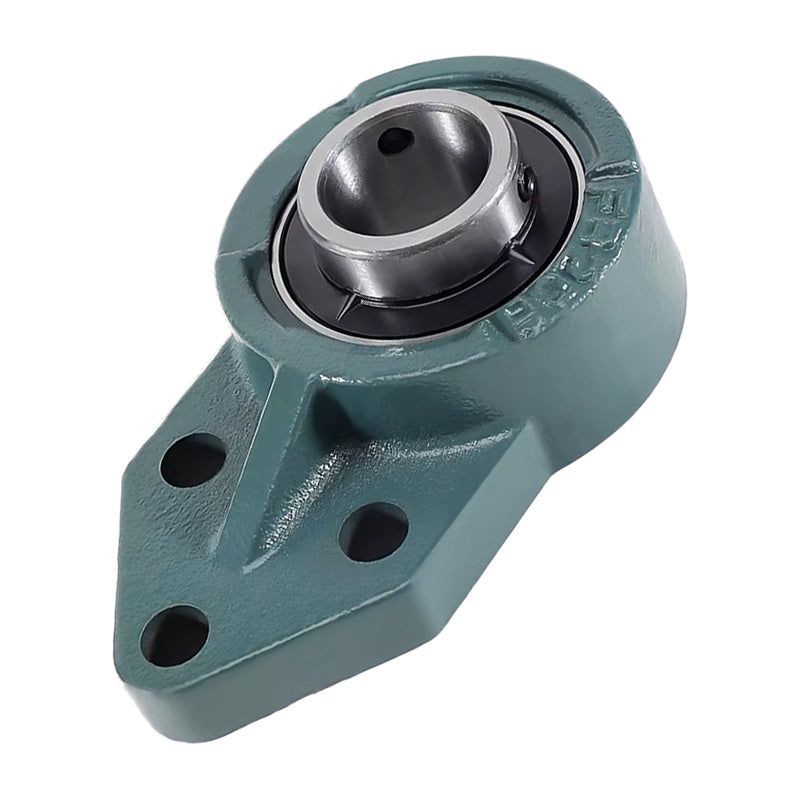

UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 45mm |
| w | = | 174mm |
| b | = | 106mm |
| k | = | 76mm |
| a | = | 80mm |
| l | = | 38mm |
| s | = | 12mm |
| g | = | 18mm |
| h | = | 65mm |
| j | = | 43mm |
| e | = | 54mm |
| i | = | 22mm |
| z | = | 52.2mm |
| B | = | 49.2mm |
| n | = | 19mm |
| Bolt size | = | M10 |
| Bearing no | = | UC209 |
| Housing no | = | FB209 |
| Weight | = | 1.924 kg |
