SKU: UCFC.201-8

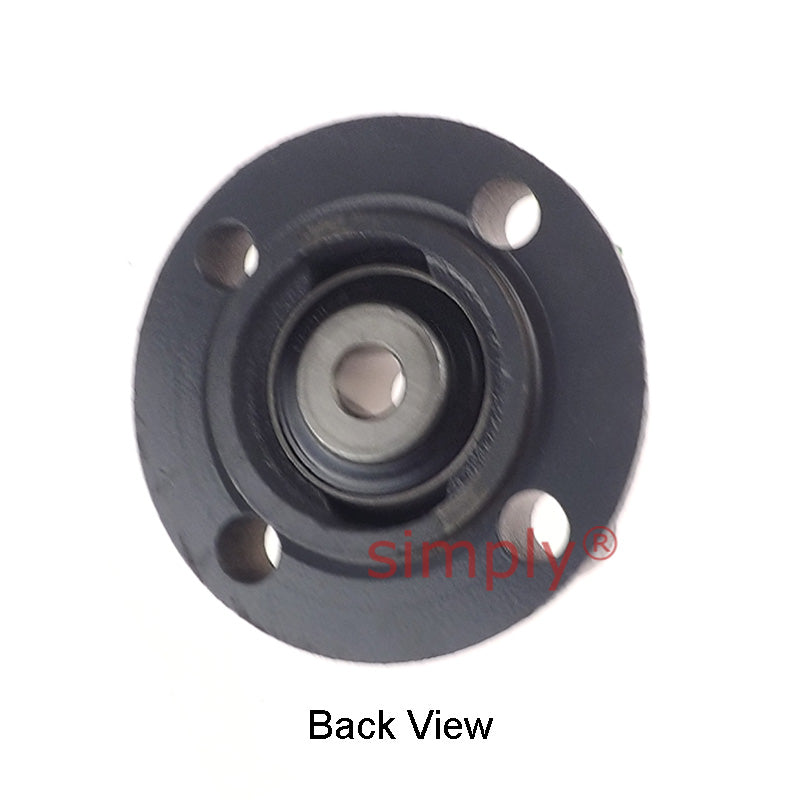

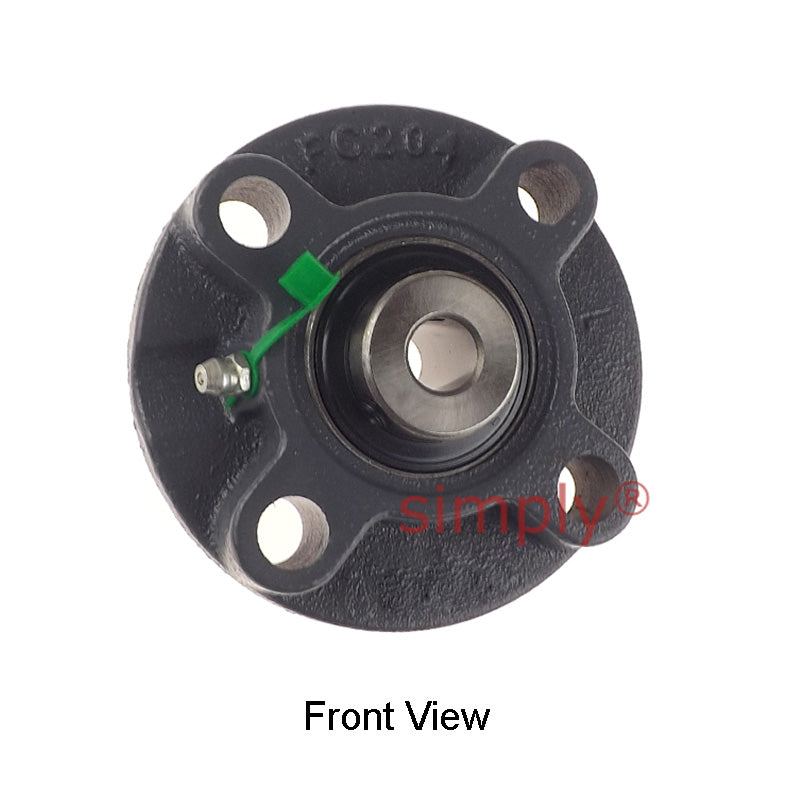

UCFC201-8 Imperial Four Bolt Cast Iron Round Flanged Housing with 1/2 inch Insert
- Regular price
- €13.15 ex VAT
- Sale price
- €13,15
- Regular price
-
In stock
Quantity Price Breaks
3
€11.70
4
€11.05
9
€10.91
19
€10.78
49
€10.65
99
€10.52
499
€9.86
999
€9.73
1999
€9.60
2999
€9.47
4999
€9.21
SKU:
UCFC.201-8
UCFC201-8 Imperial Four Bolt Cast Iron Round Flanged Housing with 1/2 inch Insert
- Regular price
- €13.15 ex VAT
- Sale price
- €13,15
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1/2 inch |
| a | = | 3-15/16 inch |
| P | = | 3-5/64 inch |
| e | = | 2-11/64 inch |
| i | = | 25/64 inch |
| L | = | 1 inch |
| s | = | 15/32 inch |
| j | = | 13/64 inch |
| k | = | 9/32 inch |
| g | = | 13/16 inch |
| f | = | 2.4409 inch |
| z | = | 1-1/8 inch |
| Bi | = | 1.2205 inch |
| n | = | 0.500 inch |
| Bolt Size | = | 3/8 inch |
| Weight | = | 0.78 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
