SKU: UCFC.203.TS.CHAL

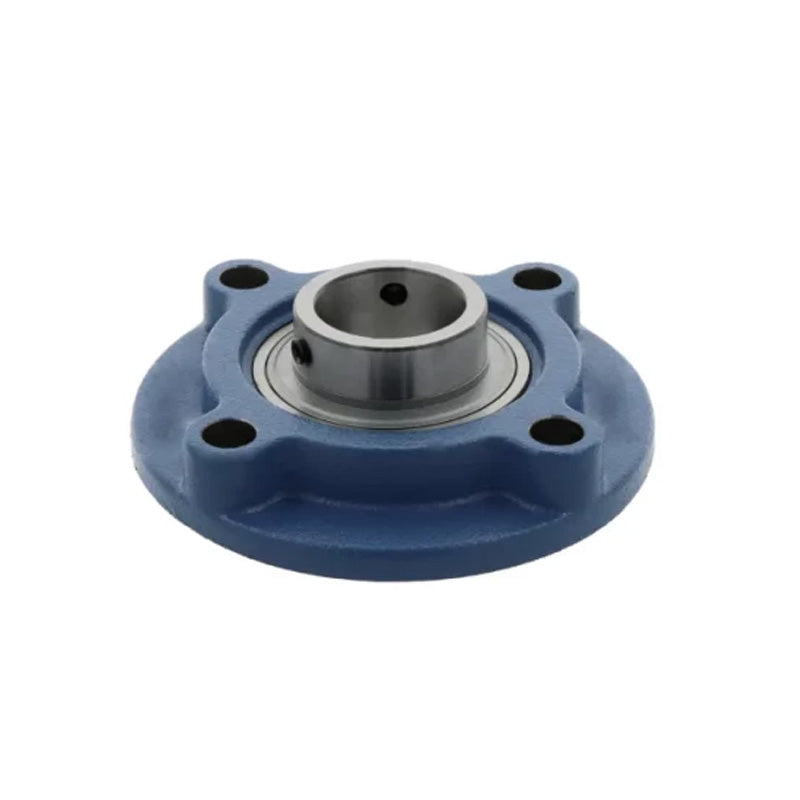

Challenge / FK UCFC203 Metric Cast Iron Four Bolt Round Flanged Housing with 17mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €29.45 ex VAT
- Sale price
- €29,45
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFC203 Metric Cast Iron Four Bolt Round Flanged Housing with 17mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €29.45 ex VAT
- Sale price
- €29,45
- Regular price
-
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 17mm |
| a | = | 100mm |
| p | = | 78mm |
| e | = | 55.1mm |
| i | = | 10mm |
| g | = | 20.5mm |
| l | = | 25.5mm |
| s | = | 12 inch |
| j | = | 5mm |
| k | = | 7mm |
| f | = | 62mm |
| z | = | 28.3mm |
| Bi | = | 31mm |
| n | = | 12.7mm |
| Bolt Size | = | M10mm |
| Insert No | = | UC203 |
| Housing No | = | FC203 |
