SKU: UCFC.205.TS.CHAL

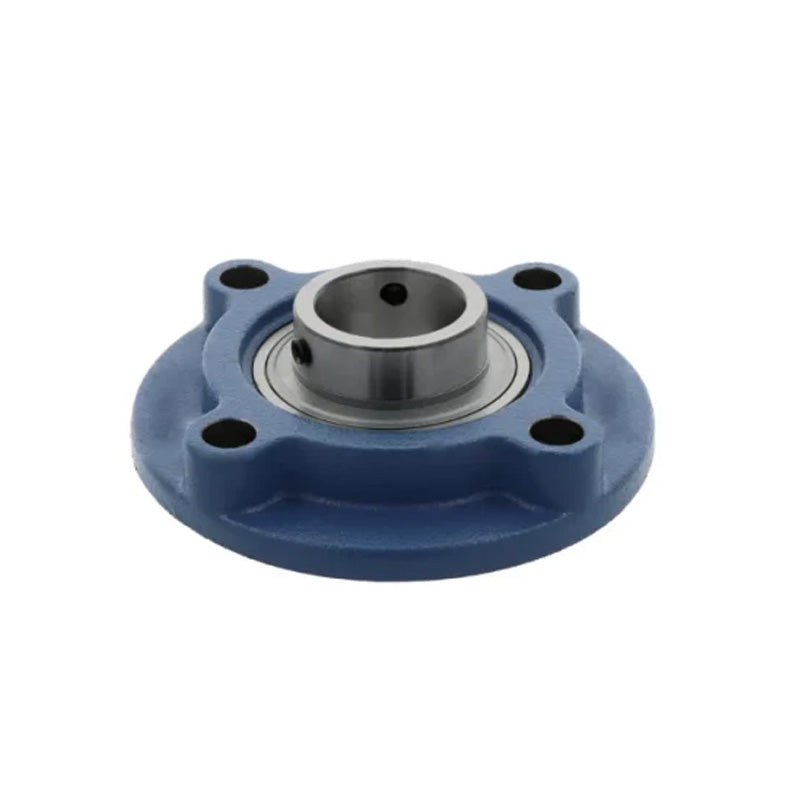

Challenge / FK UCFC205 Metric Cast Iron Four Bolt Round Flanged Housing with 25mm Bore 115mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €32.08 ex VAT
- Sale price
- €32,08
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFC205 Metric Cast Iron Four Bolt Round Flanged Housing with 25mm Bore 115mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €32.08 ex VAT
- Sale price
- €32,08
- Regular price
-
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| = | Shaft Diameter d | |
| 25mm | = | a |
| 115mm | = | p |
| 90mm | = | e |
| 63.6mm | = | i |
| 10mm | = | g |
| 21mm | = | l |
| 27mm | = | s |
| 12mm | = | j |
| 6mm | = | k |
| 7mm | = | f |
| 70mm | = | z |
| 29.7mm | = | Bi |
| 34mm | = | n |
| 14.3mm | = | Bolt Size |
| M10mm | = | Insert No |
| UC205 | = | Housing No |
| FC205 | = | N/A |
