SKU: UCFC.214.TS.CHAL

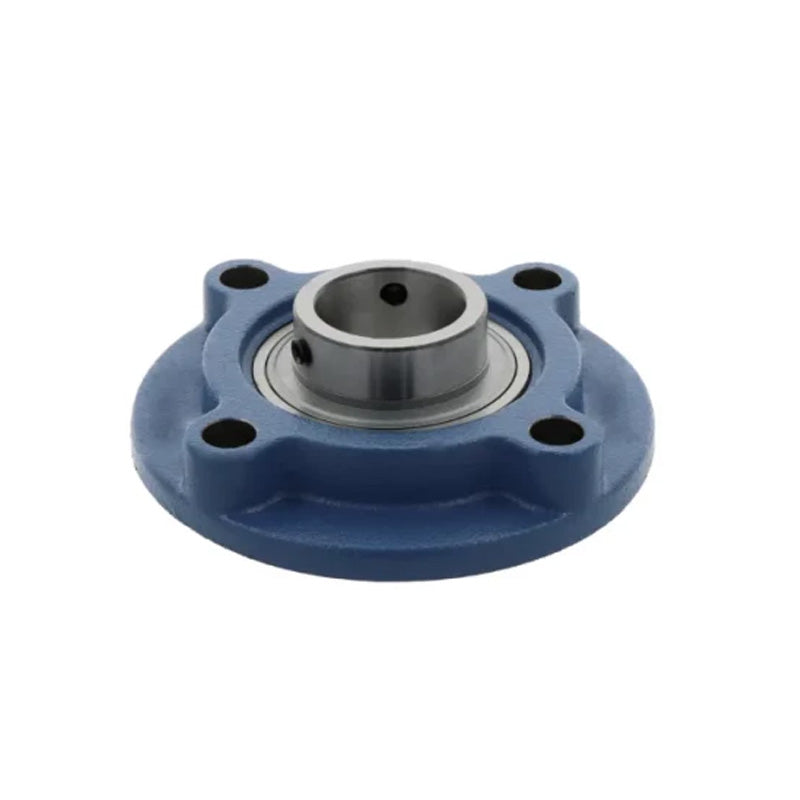

Challenge / FK UCFC214 Metric Cast Iron Four Bolt Round Flanged Housing with 70mm Bore 215mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €315.66 ex VAT
- Sale price
- €315,66
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFC214 Metric Cast Iron Four Bolt Round Flanged Housing with 70mm Bore 215mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €315.66 ex VAT
- Sale price
- €315,66
- Regular price
-
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 70mm |
| a | = | 215mm |
| p | = | 177mm |
| e | = | 125.1mm |
| i | = | 17mm |
| g | = | 40mm |
| l | = | 54mm |
| s | = | 19 inch |
| j | = | 14mm |
| k | = | 18mm |
| f | = | 150mm |
| z | = | 61.4mm |
| Bi | = | 74.6mm |
| n | = | 30.2mm |
| Bolt Size | = | M16mm |
| Insert No | = | UC214 |
| Housing No | = | FC214 |
