SKU: UCFC.216.TS.CHAL

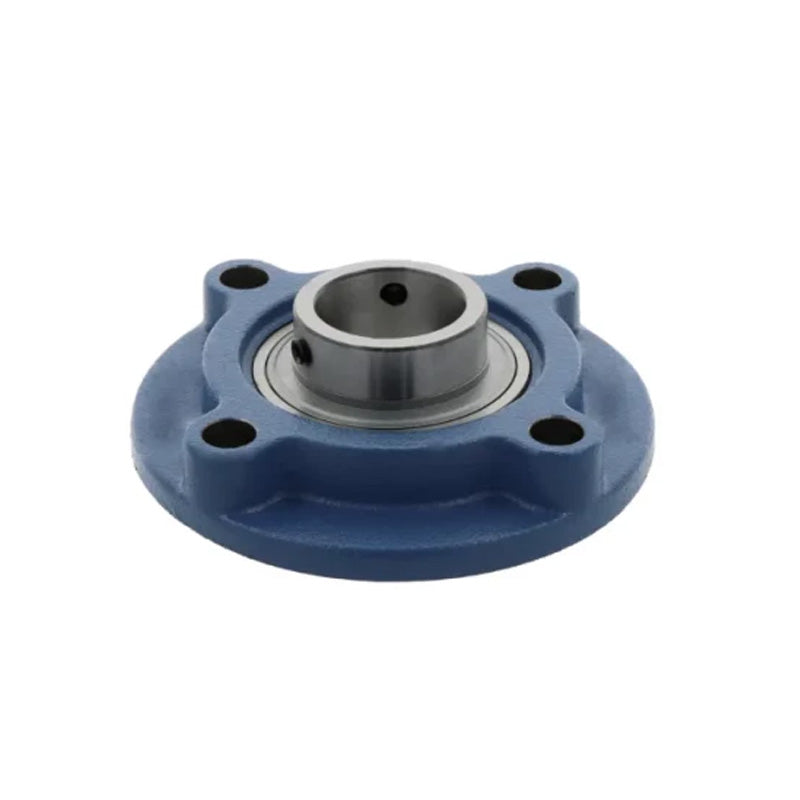

Challenge / FK UCFC216 Metric Cast Iron Four Bolt Round Flanged Housing with 80mm Bore 240mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €462.69 ex VAT
- Sale price
- €462,69
- Regular price
-
Quantity Price Breaks
Challenge / FK UCFC216 Metric Cast Iron Four Bolt Round Flanged Housing with 80mm Bore 240mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €462.69 ex VAT
- Sale price
- €462,69
- Regular price
-
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 80mm |
| a | = | 240mm |
| p | = | 200mm |
| e | = | 141.4mm |
| i | = | 18mm |
| g | = | 42mm |
| l | = | 58mm |
| s | = | 23 inch |
| j | = | 16mm |
| k | = | 18mm |
| f | = | 170mm |
| z | = | 67.3mm |
| Bi | = | 82.6mm |
| n | = | 33.3mm |
| Bolt Size | = | M20mm |
| Insert No | = | UC216 |
| Housing No | = | FC216 |
