SKU: UCFC206CO-SNR

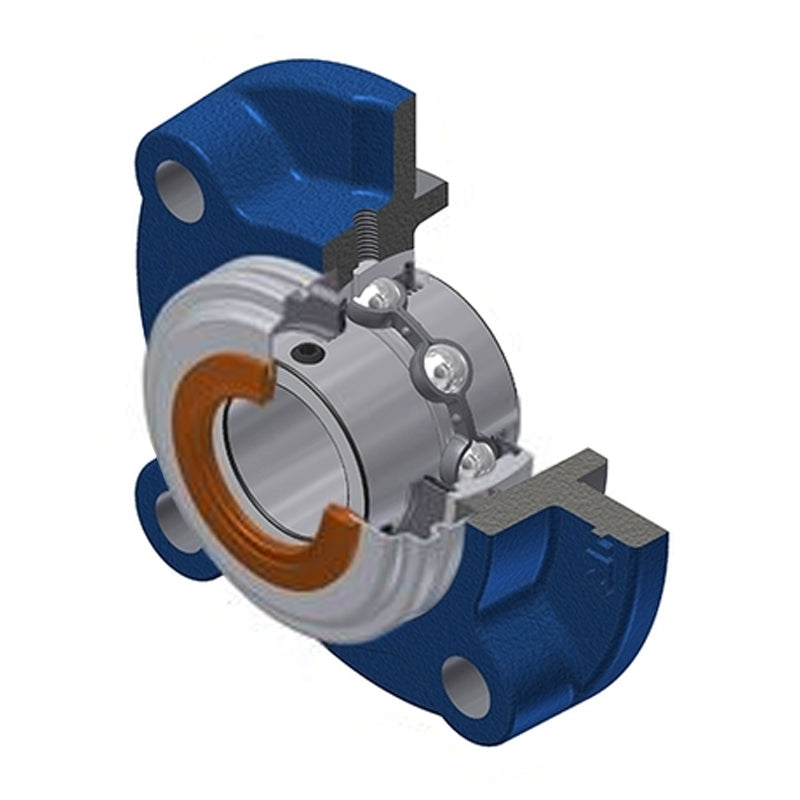

SNR UCFC206CO Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €52.32 ex VAT
- Sale price
- €52,32
- Regular price
-
Not in stock
Quantity Price Breaks
3
€46.56
4
€43.95
9
€43.43
19
€42.90
49
€42.38
99
€41.86
499
€39.24
999
€38.72
1999
€38.19
2999
€37.67
4999
€36.62
SKU:
UCFC206CO-SNR
SNR UCFC206CO Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €52.32 ex VAT
- Sale price
- €52,32
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 31mm |
| A1 | = | 8mm |
| A2 | = | 32.2mm |
| A4 | = | 23mm |
| B | = | 38.1mm |
| e | = | 10mm |
| H3 | = | 80mm |
| J | = | 100mm |
| L | = | 125mm |
| N | = | 12mm |
| S | = | 15.9mm |
| Dz | = | 70mm |
| Z | = | 44.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 1.314 kg |
