SKU: UCFC209CC-SNR

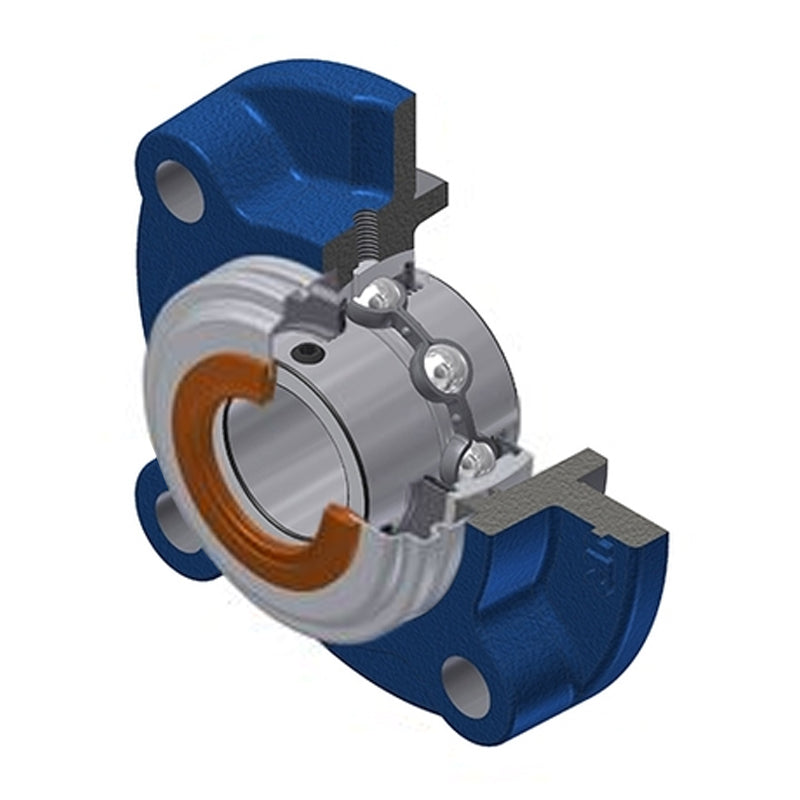

SNR UCFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
Not in stock
Quantity Price Breaks
3
€54.33
4
€51.27
9
€50.66
19
€50.05
49
€49.44
99
€48.83
499
€45.78
999
€45.17
1999
€44.56
2999
€43.95
4999
€42.73
SKU:
UCFC209CC-SNR
SNR UCFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- €61.04 ex VAT
- Sale price
- €61,04
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 38mm |
| A1 | = | 10mm |
| A2 | = | 40.2mm |
| A4 | = | 26mm |
| B | = | 49.2mm |
| e | = | 10mm |
| H3 | = | 105mm |
| J | = | 132mm |
| L | = | 160mm |
| N | = | 16mm |
| S | = | 19mm |
| Dz | = | 95mm |
| Z | = | 57.7mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.5 kg |
