SKU: UCFC210CO-SNR

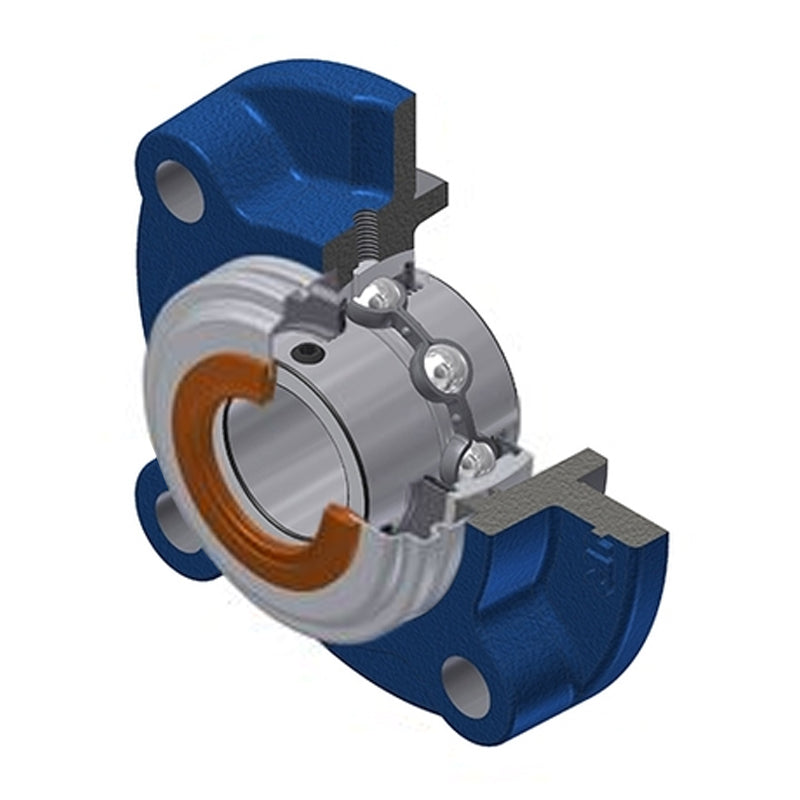

SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €61.95 ex VAT
- Sale price
- €61,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€55.14
4
€52.04
9
€51.42
19
€50.80
49
€50.18
99
€49.56
499
€46.46
999
€45.84
1999
€45.22
2999
€44.60
4999
€43.37
SKU:
UCFC210CO-SNR
SNR UCFC210CO Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €61.95 ex VAT
- Sale price
- €61,95
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 40mm |
| A1 | = | 14mm |
| A2 | = | 42.6mm |
| A4 | = | 28mm |
| B | = | 51.6mm |
| e | = | 10mm |
| H3 | = | 110mm |
| J | = | 138mm |
| L | = | 165mm |
| N | = | 16mm |
| S | = | 19mm |
| Dz | = | 100mm |
| Z | = | 59.8mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.897 kg |
