SKU: UCFC213-SNR
SNR UCFC213 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
- Regular price
- €94.46 ex VAT
- Sale price
- €94,46
- Regular price
-
Not in stock
Quantity Price Breaks
3
€84.07
4
€79.35
9
€78.40
19
€77.46
49
€76.51
99
€75.57
499
€70.85
999
€69.90
1999
€68.96
2999
€68.01
4999
€66.12
SKU:
UCFC213-SNR
SNR UCFC213 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
- Regular price
- €94.46 ex VAT
- Sale price
- €94,46
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

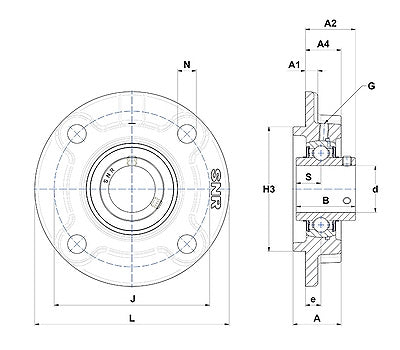

| --- | = | Dimensions |
| Shaft diameter d | = | 65mm |
| A | = | 49mm |
| A1 | = | 15mm |
| A2 | = | 55.7mm |
| A4 | = | 35mm |
| B | = | 65.1mm |
| e | = | 16mm |
| H3 | = | 145mm |
| J | = | 170mm |
| L | = | 205mm |
| N | = | 19mm |
| S | = | 25.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 57.2 kN |
| Static load C0 | = | 40 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 5.48 kg |
