SKU: UCFCE209-SNR

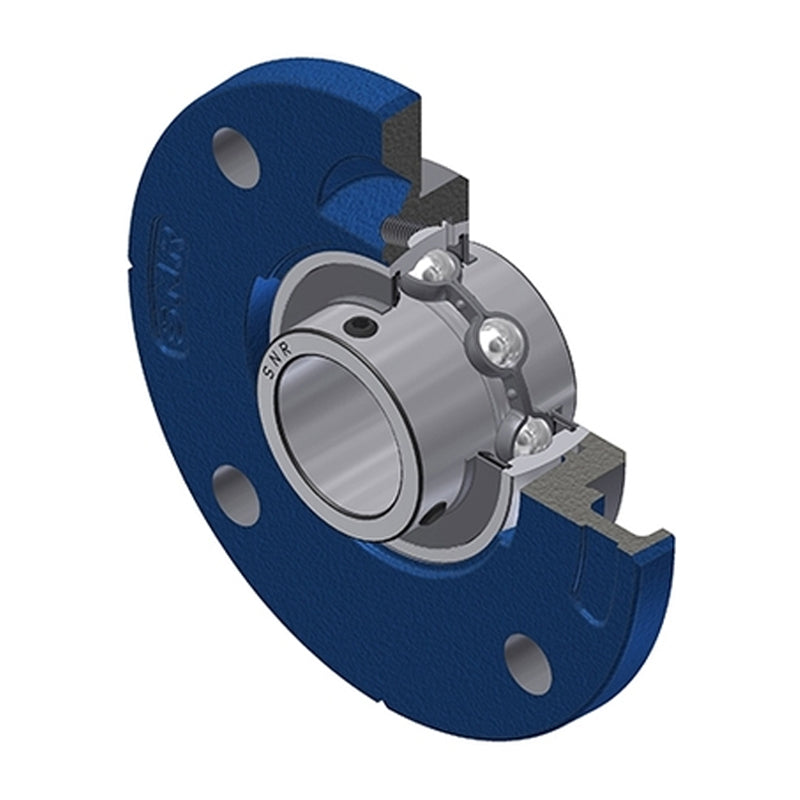

SNR UCFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Not in stock
Quantity Price Breaks
3
€42.68
4
€40.29
9
€39.81
19
€39.33
49
€38.85
99
€38.37
499
€35.97
999
€35.49
1999
€35.01
2999
€34.53
4999
€33.57
SKU:
UCFCE209-SNR
SNR UCFCE209 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| A | = | 25mm |
| A1 | = | 12mm |
| A2 | = | 28.2mm |
| A3 | = | 2mm |
| B | = | 49.2mm |
| e | = | -2mm |
| H3 | = | 105mm |
| J | = | 130mm |
| L | = | 155mm |
| N | = | 14mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.86 kg |
